Module, Park Assist: Removal

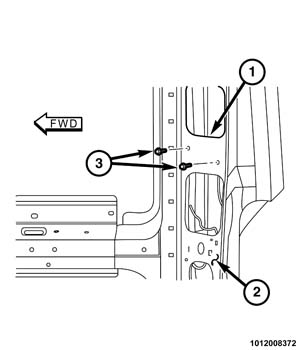

GC0160462Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative cable from the battery.
  2. Remove the trim from the right inner D-pillar (2) to access the Park Assist Module (PAM) (1) located within the D-pillar. Refer to PANEL, QUARTER TRIM, REMOVAL .
  3. Remove the fasteners (3) that secure the PAM within the D-pillar.

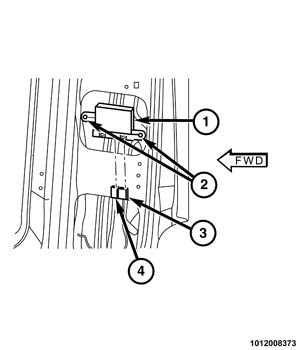

    GC0160661Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the body wire harness connector (4) and the jumper wire harness connector (3) from the PAM (1) connector receptacles.
  5. Remove the PAM from the vehicle.
