Panel, Instrument: Removal

GC0160639Courtesy of CHRYSLER GROUP, LLC
WARNING:

Disable the airbag system before attempting any steering wheel, steering column or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE:

Take the proper precautions to protect the front face of the instrument panel from cosmetic damage during this service procedure.

  1. Disconnect the heater hoses from the heater core.
  2. Disconnect and position aside the evaporator lines at the cowl panel.
  3. Disconnect the negative battery cable (3). Refer to CABLES, BATTERY, REMOVAL .
    GC0160570Courtesy of CHRYSLER GROUP, LLC
  4. Position the front wheels of vehicle (and steering wheel) in the STRAIGHT-AHEAD position. This action will help keep the clock spring properly centered for reinstallation.
  5. Remove the steering column opening cover fasteners (1).
    GC0160693Courtesy of CHRYSLER GROUP, LLC
  6. Remove the steering column opening cover (1).
    GC0160697Courtesy of CHRYSLER GROUP, LLC
  7. Remove fasteners (1 and 2) and kick panel (3).
    GC0160328Courtesy of CHRYSLER GROUP, LLC
  8. Remove the four screws (1) attaching the lower shroud to the upper shroud. After removing the screws, unclip the upper and lower shrouds from one another by applying hand pressure along the seams where the shrouds connect on the sides.
    GC0160566Courtesy of CHRYSLER GROUP, LLC
  9. Remove the two screws (1) attaching the upper shroud to the column.
    GC0160356Courtesy of CHRYSLER GROUP, LLC
  10. Remove the remaining screw (1) attaching the upper shroud (2) to the column.
  11. Push the tilt lever upward, locking the column in place.
    GC0160441Courtesy of CHRYSLER GROUP, LLC
  12. Disconnect the wiring harness connectors (2) at the Steering Column Control Module (SCCM).
    GC0160393Courtesy of CHRYSLER GROUP, LLC
  13. Remove the intermediate shaft coupling bolt (2).
  14. Separate the intermediate shaft (1) at the base of the column from the shaft extension.
  15. Remove the wiring harness routing clips from the bottom of the Steering Column.

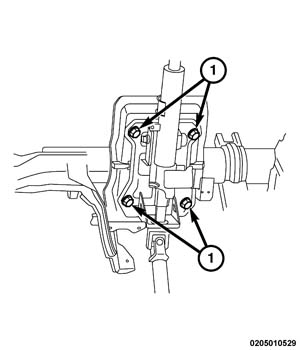

    GC0160293Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    If the same steering column is to be reinstalled, clamp the tilt lever to lock the column in place so that it can be easily reinstalled in the same orientation.

  16. Remove the mounting bolts (1) attaching the steering column to the instrument panel.
  17. Remove the steering column from the vehicle.
    GC0160231Courtesy of CHRYSLER GROUP, LLC
  18. Using a small flat bladed tool, or equivalent remove the trim covers (2) and remove the fasteners (1).
    GC0160653Courtesy of CHRYSLER GROUP, LLC
  19. Remove the cup holder insert (1).
    GC0160421Courtesy of CHRYSLER GROUP, LLC
  20. Remove the lower fasteners (1).
    GC0160208Courtesy of CHRYSLER GROUP, LLC
  21. Using (special tool #C-4755, Trim Stick) or equivalent, remove the cup holder trim panel (1).
    GC0160726Courtesy of CHRYSLER GROUP, LLC
  22. Remove the fasteners (1) and remove the cup holder trim support bracket (2).
    GC0160382Courtesy of CHRYSLER GROUP, LLC
  23. Remove the fasteners (1) and remove the lower trim.
    GC0160464Courtesy of CHRYSLER GROUP, LLC
  24. Remove the passenger side foot rest retainers and foot rest.
  25. Disconnect the electrical connectors that are found under the foot rest.
  26. Remove the fastener (1) and position the ground cable aside.
    GC0160485Courtesy of CHRYSLER GROUP, LLC

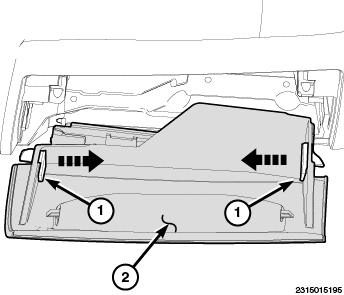

  27. Open the glove box door (2).
  28. Pull the release tabs (1) inward and release the door into the full down position.

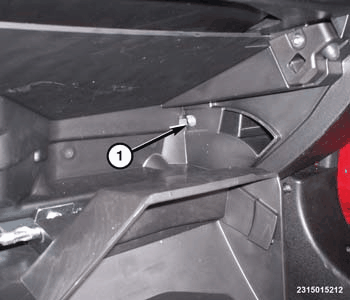

    GC0160571Courtesy of CHRYSLER GROUP, LLC
  29. Remove the inner fastener (1).
    GC0160354Courtesy of CHRYSLER GROUP, LLC

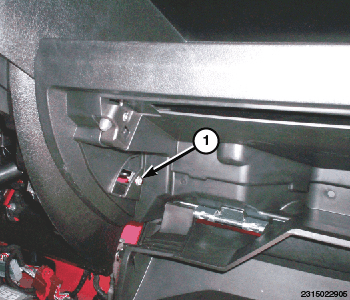

  30. Remove the inner fastener (1).
    GC0160735Courtesy of CHRYSLER GROUP, LLC

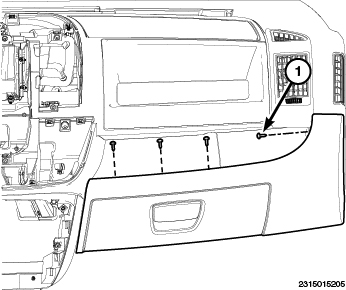

  31. Remove the outer fasteners (1).

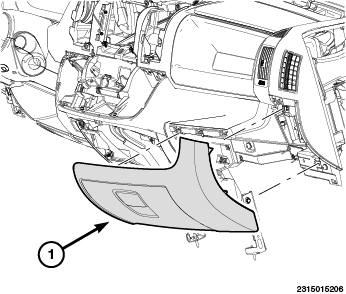

    GC0160591Courtesy of CHRYSLER GROUP, LLC
  32. Remove the glove box assembly (1).
    GC0160452Courtesy of CHRYSLER GROUP, LLC
  33. Disconnect the antenna leads and electrical connectors (1).

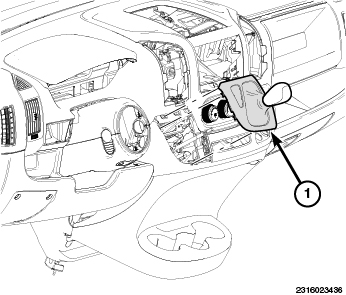

    GC0160286Courtesy of CHRYSLER GROUP, LLC
  34. Remove the shift bezel (1) and disconnect the electrical connector.
  35. Remove the shifter. Refer to SHIFTER, TRANSMISSION, REMOVAL .
    GC0160345Courtesy of CHRYSLER GROUP, LLC

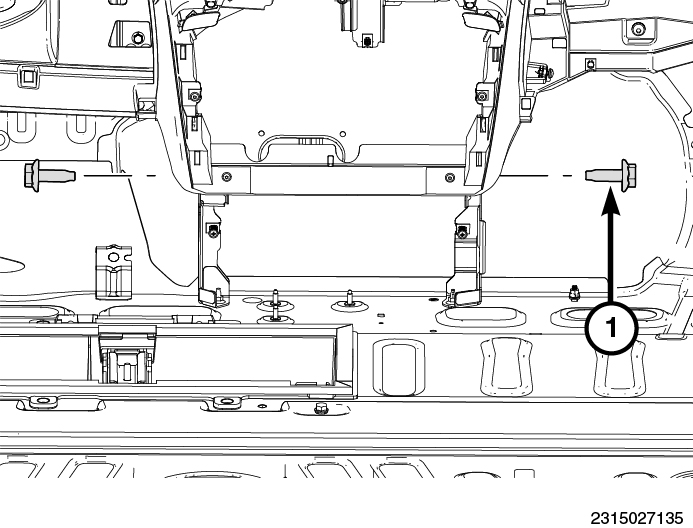

  36. Remove the lower center support bolts (1).
  37. Separate the HVAC drain tube from the floor.
    GC0160612Courtesy of CHRYSLER GROUP, LLC
  38. Remove the fastener (1) and separate the hood release handle from the IP.
    GC0160312Courtesy of CHRYSLER GROUP, LLC
  39. Disconnect the cable from the lever (1) and separate the cable housing (2) remove the handle.
    GC0160635Courtesy of CHRYSLER GROUP, LLC

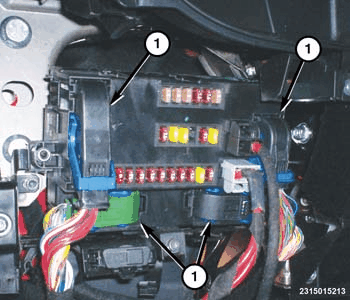

  40. Disconnect the electrical connectors (1) from the Body Control Module (BCM).

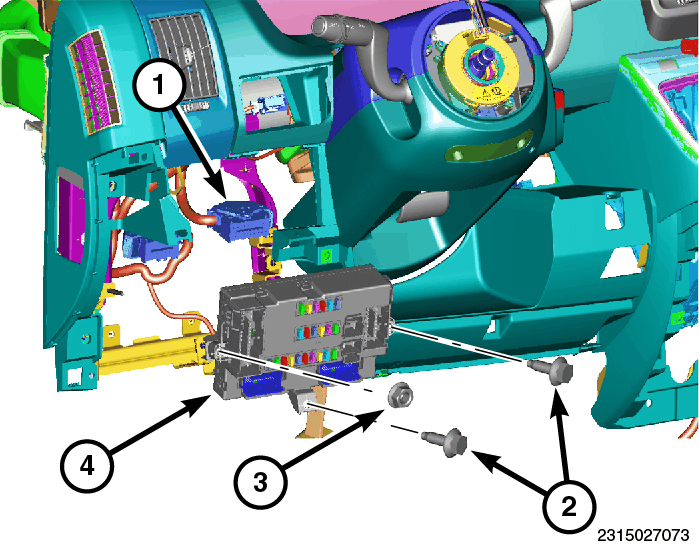

    GC0160372Courtesy of CHRYSLER GROUP, LLC
  41. Remove the bolts (2) and the nut (3) and remove the BCM.
  42. Disconnect the electrical connectors (1).
    GC0160455Courtesy of CHRYSLER GROUP, LLC

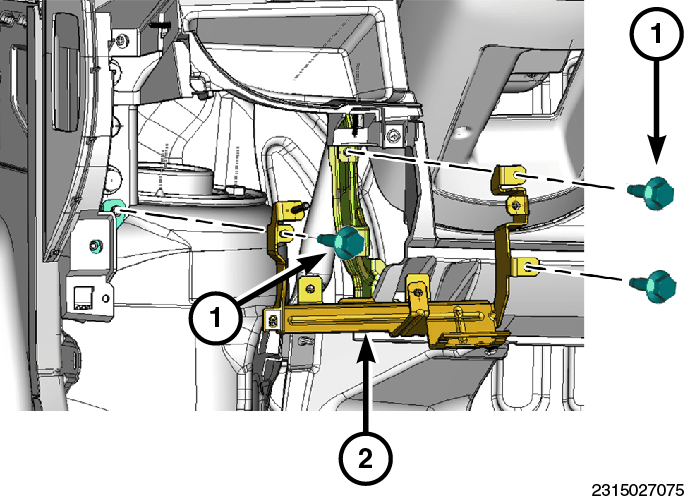

  43. Remove the bolts (1) and position the bracket (2) aside.
    GC0160585Courtesy of CHRYSLER GROUP, LLC
  44. Remove the fastener and remove the ground (1).
    GC0160299Courtesy of CHRYSLER GROUP, LLC
  45. Remove the fastener (2) and separate the bracket (1).
  46. Separate the harness retainers in the steering column opening and position the harness through the IP.
    GC0160551Courtesy of CHRYSLER GROUP, LLC

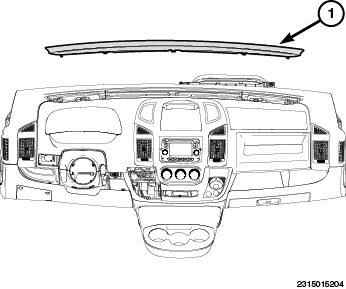

  47. Using a trim stick, remove the defroster grille (1).
  48. Remove the radio. Refer to RADIO, REMOVAL .
    GC0160418Courtesy of CHRYSLER GROUP, LLC

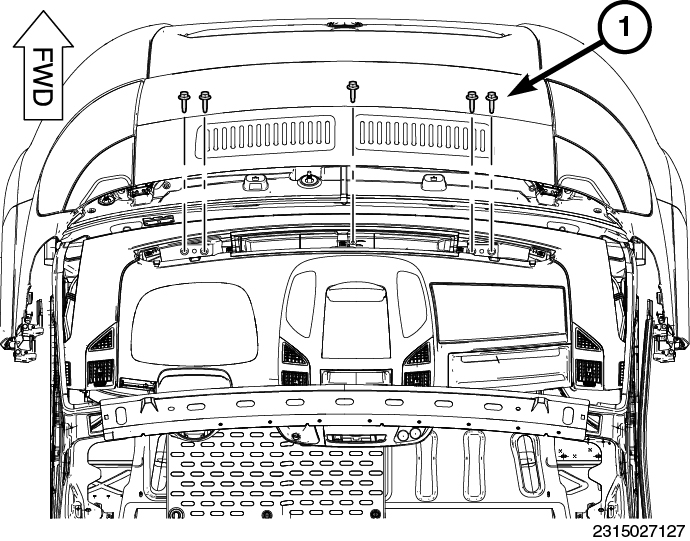

  49. Remove the fenceline bolts (1).
    GC0160516Courtesy of CHRYSLER GROUP, LLC
  50. Remove the side support bolts (2) and with the aid of a helper, remove the instrument panel assembly (1).
