Cover, Instrument Panel: Removal

GC0160639Courtesy of CHRYSLER GROUP, LLC
WARNING:

Disable the airbag system before attempting any steering wheel, steering column or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE:

Take the proper precautions to protect the front face of the instrument panel from cosmetic damage during this service procedure.

  1. Disconnect the negative battery cable. Refer to CABLES, BATTERY, REMOVAL .
    GC0160570Courtesy of CHRYSLER GROUP, LLC
  2. Position the front wheels of vehicle (and steering wheel) in the STRAIGHT-AHEAD position. This action will help keep the clock spring properly centered for reinstallation.
  3. Remove the steering column opening cover fasteners (1).
    GC0160693Courtesy of CHRYSLER GROUP, LLC
  4. Remove the steering column opening cover (1).
    GC0160697Courtesy of CHRYSLER GROUP, LLC
  5. Remove fasteners (1 and 2) and kick panel (3).
    GC0160328Courtesy of CHRYSLER GROUP, LLC
  6. Remove the four screws (1) attaching the lower shroud to the upper shroud. After removing the screws, un-clip the upper and lower shrouds from one another by applying hand pressure along the seams where the shrouds connect on the sides.
    GC0160566Courtesy of CHRYSLER GROUP, LLC
  7. Remove the two screws (1) attaching the upper shroud to the column.
    GC0160356Courtesy of CHRYSLER GROUP, LLC
  8. Remove the remaining screw (1) attaching the upper shroud (2) to the column.
  9. Push the tilt lever upward, locking the column in place.
    GC0160441Courtesy of CHRYSLER GROUP, LLC
  10. Disconnect the wiring harness connectors (2) at the Steering Column Control Module (SCCM).
    GC0160393Courtesy of CHRYSLER GROUP, LLC
  11. Remove the intermediate shaft coupling bolt (2).
  12. Separate the intermediate shaft (1) at the base of the column from the shaft extension.
  13. Remove the wiring harness routing clips from the bottom of the Steering Column.
    GC0160293Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    If the same steering column is to be reinstalled, clamp the tilt lever to lock the column in place so that it can be easily reinstalled in the same orientation.

  14. Remove the mounting bolts (1) attaching the steering column to the instrument panel.
  15. Remove the steering column from the vehicle.
    GC0160231Courtesy of CHRYSLER GROUP, LLC
  16. Using a small flat bladed tool, or equivalent remove the trim covers (2) and remove the fasteners (1).
    GC0160653Courtesy of CHRYSLER GROUP, LLC
  17. Remove the cup holder insert (1).
    GC0160421Courtesy of CHRYSLER GROUP, LLC
  18. Remove the lower fasteners (1).
    GC0160208Courtesy of CHRYSLER GROUP, LLC
  19. Using (special tool #C-4755, Trim Stick) or equivalent, remove the cup holder trim panel (1).
    GC0160726Courtesy of CHRYSLER GROUP, LLC
  20. Remove the fasteners (1) and remove the cup holder trim support bracket (2).
    GC0160382Courtesy of CHRYSLER GROUP, LLC
  21. Remove the fasteners (1) and remove the lower trim.
    GC0160247Courtesy of CHRYSLER GROUP, LLC

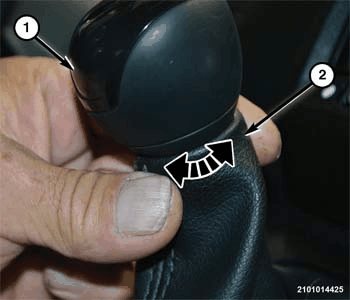

  22. Grasp and slightly twist the top of the shifter boot (2) at the base of the shifter knob (1) to release the boot from the knob.
    GC0160217Courtesy of CHRYSLER GROUP, LLC

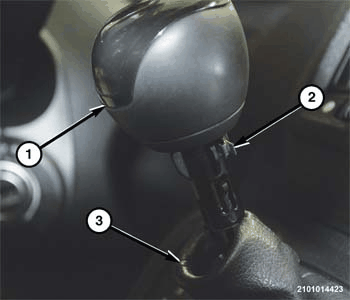

  23. Pull the shifter boot (3) down.
  24. Using a suitable tool pull the retention clip (2) out of the shifter knob (1).
  25. Pull up on the knob to remove.
    GC0160286Courtesy of CHRYSLER GROUP, LLC
  26. Using a trim stick, separate shifter bezel from instrument panel.
    GC0160700Courtesy of CHRYSLER GROUP, LLC

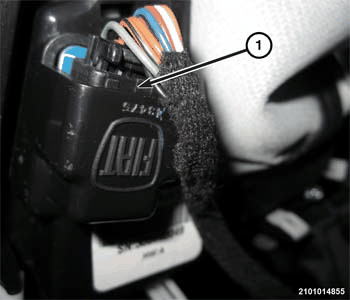

  27. Disconnect harness connector (1) from the tow/haul switch.
  28. Remove the shifter bezel
    GC0160485Courtesy of CHRYSLER GROUP, LLC
  29. Open the glove box door (2).
  30. Pull the release tabs (1) inward and release the door into the full down position.
    GC0160571Courtesy of CHRYSLER GROUP, LLC
  31. Remove the inner fastener (1).
    GC0160354Courtesy of CHRYSLER GROUP, LLC
  32. Remove the inner fastener (1).
    GC0160735Courtesy of CHRYSLER GROUP, LLC
  33. Remove the outer fasteners (1).
    GC0160591Courtesy of CHRYSLER GROUP, LLC
  34. Remove the glove box assembly (1).
    GC0160452Courtesy of CHRYSLER GROUP, LLC
  35. Disconnect the antenna leads and electrical connectors (1).
    GC0160384Courtesy of CHRYSLER GROUP, LLC

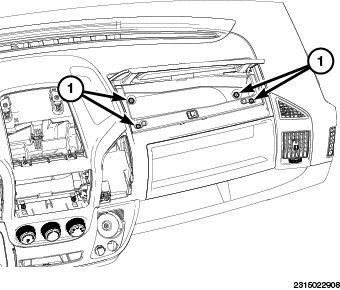

  36. Remove the fasteners (1) and remove the upper glove box.
  37. Remove the passenger side air bag. Refer to AIR BAG, PASSENGER, REMOVAL .
    GC0160370Courtesy of CHRYSLER GROUP, LLC
  38. Remove the fasteners (1) and remove the instrument cluster bezel.
    GC0160301Courtesy of CHRYSLER GROUP, LLC

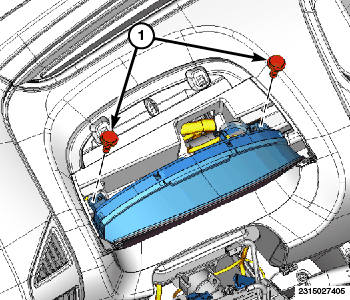

  39. Remove the fasteners (1).
    GC0160491Courtesy of CHRYSLER GROUP, LLC

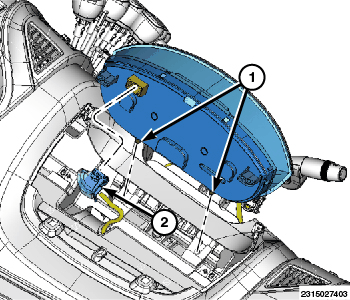

  40. Remove the cluster and disconnect the electrical connectors (2).
    GC0160448Courtesy of CHRYSLER GROUP, LLC

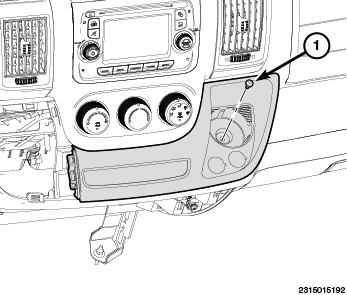

  41. Remove the fastener (1) and remove the bezel.
  42. Disconnect the electrical connectors.
    GC0160674Courtesy of CHRYSLER GROUP, LLC
  43. Remove the radio. Refer to RADIO, REMOVAL .

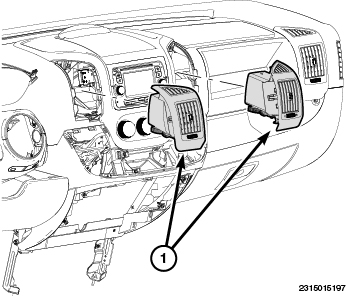

  44. Using a trim stick or equivalent, remove the center HVAC vents (1).
    GC0160454Courtesy of CHRYSLER GROUP, LLC

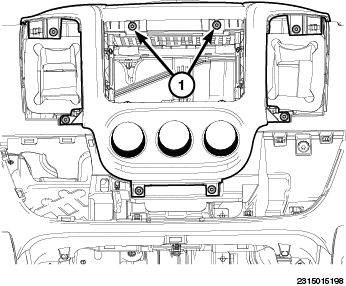

  45. Remove the clip board fasteners (1).
    GC0160265Courtesy of CHRYSLER GROUP, LLC

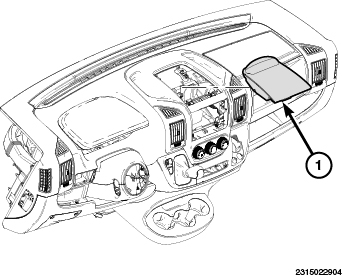

  46. Remove the clip board (1).
    GC0160449Courtesy of CHRYSLER GROUP, LLC

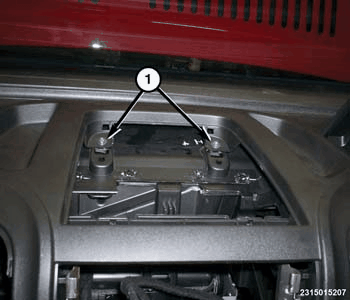

  47. Remove the top bezel fasteners (1).
    GC0160595Courtesy of CHRYSLER GROUP, LLC

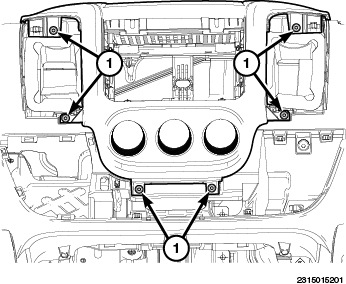

  48. Remove the front bezel fasteners (1).
    GC0160742Courtesy of CHRYSLER GROUP, LLC

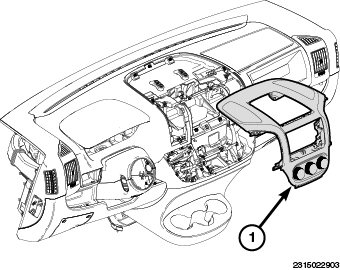

  49. Using a trim stick or equivalent, remove the center bezel (1) and disconnect the electrical connectors.
    GC0160612Courtesy of CHRYSLER GROUP, LLC
  50. Remove the fastener (1) and separate the hood release handle from the IP.
    GC0160312Courtesy of CHRYSLER GROUP, LLC
  51. Disconnect the cable from the lever (1) and separate the cable housing (2) remove the handle.
    GC0160414Courtesy of CHRYSLER GROUP, LLC

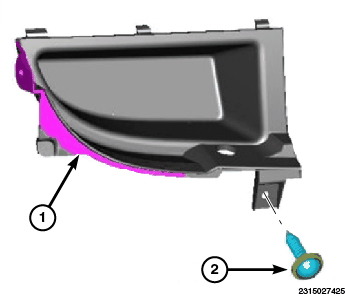

  52. Remove the fastener (2) and remove the storage bin (1) from the left side of the steering column opening.
    GC0160394Courtesy of CHRYSLER GROUP, LLC

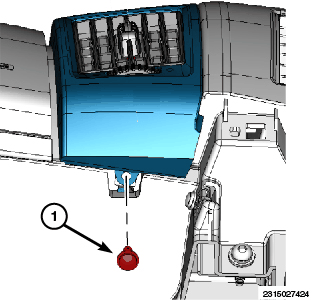

  53. Remove the fasteners (1) and remove both outer HVAC outlets.
    GC0160551Courtesy of CHRYSLER GROUP, LLC
  54. Using a trim stick, remove the defroster grille (1).
    GC0160399Courtesy of CHRYSLER GROUP, LLC

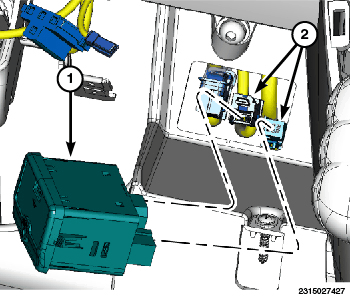

  55. Using a small flat bladed tool or equivalent, remove the USB port (1) from the right side of the steering column opening and disconnect the electrical connectors (2).
    GC0160357Courtesy of CHRYSLER GROUP, LLC
  56. Using a small flat bladed tool or equivalent, remove the mode switch (1) from the left side of the steering column opening and disconnect the electrical connector (2).
    GC0160395Courtesy of CHRYSLER GROUP, LLC
  57. Remove the I/P cover fasteners (1).
    GC0160388Courtesy of CHRYSLER GROUP, LLC
  58. Remove the I/P cover fasteners (1).
    GC0160646Courtesy of CHRYSLER GROUP, LLC
  59. Remove the I/P cover fasteners (1).
    GC0160565Courtesy of CHRYSLER GROUP, LLC
  60. Remove the I/P cover fasteners (1).
    GC0160705Courtesy of CHRYSLER GROUP, LLC
  61. Remove the I/P cover fasteners (1).
    GC0160226Courtesy of CHRYSLER GROUP, LLC
  62. Remove the I/P cover (1) from the I/P support beam (2).
