Hinge, Hood: Removal

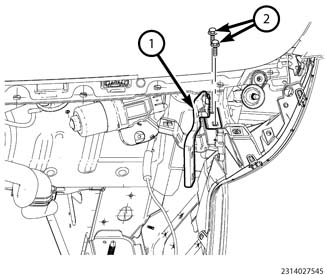

GC0160336Courtesy of CHRYSLER GROUP, LLC
  1. Remove the hood. Refer to HOOD, REMOVAL .
  2. Using a grease pencil or equivalent, mark the position of the hood hinge (1) on the body to aid installation.
  3. Remove the two bolts (2) and the hood hinge.
