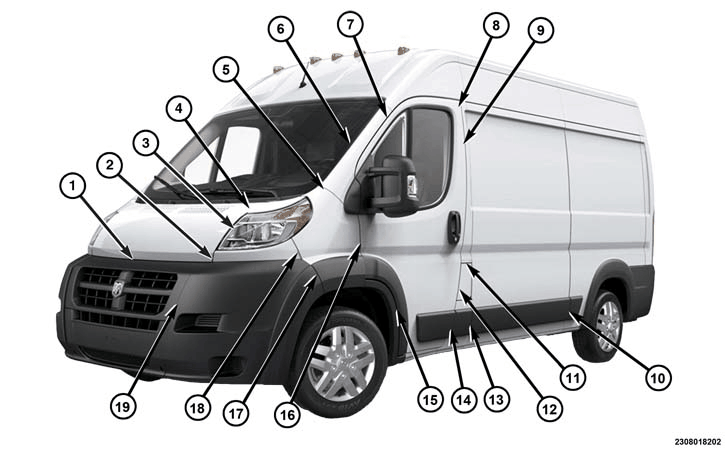

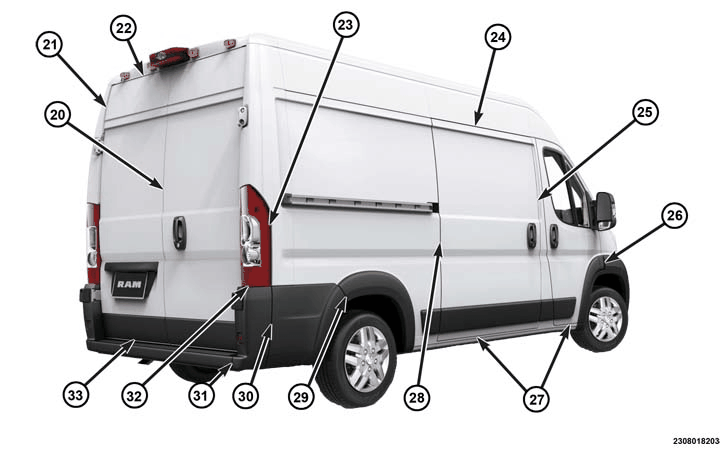

Body Gap And Flush Measurements

Courtesy of CHRYSLER GROUP, LLC

Courtesy of CHRYSLER GROUP, LLC

NOTE:

All dimensions are in millimeters.

O/F = Over Flush
U/F = Under Flush
U/D = Up/Down
F/A = Fore/Aft

DIMENSION	DESCRIPTION	GAP	FLUSH
1	Hood to Front Fascia	4.0 +/- 1.5 Parallel within 1.0	-
2	Hood to Headlamp Filler (Lower)	6.0 +/- 1.0	Hood O/F 2.5 +/- 1.0
3	Hood to Headlamp	4.5 +/- 1.0	Headlamp U/F 2.0 +/- 1.0
4	Hood to Headlamp Filler (Upper)	4.5 +/- 1.0	0.0 +/- 1.0
5	Fender to A-pillar	2.0 +/- 1.0	0.0 +/- 1.0
6	Windshield to A-pillar	4.0 +/- 1.0	A-pillar O/F 2.5 + 1.0 /- 2.0
7	Front Door to A-pillar	5.0 +/- 1.5	A-pillar O/F 0.0 + 0.0 /- 1.0 Parallel within 1.0
8	Front Door to Roof Side Panel	5.0 +/- 1.5	Door U/F Variable from 2.0 to 1.5 +/- 1.0
9	Front Door to B-pillar	5.0 +/- 1.5 Parallel within 1.0	Front Door O/F 0.0 + 1.0
10	Rear Body Side Molding to Middle Panel/Sliding Door Body Side Molding	10.5 +/- 3.0	Middle Panel/Sliding Door Body Side Molding O/F 0.0 + 1.5/- 0.0
11	Fuel Filler Door (Top and Bottom)	4.0 +/- 1.0	Fuel Filler Door U/F - 0.5 +/- 0.5
12	Fuel Filler Door (Front and Rear)	7.0 +/- 1.5 Parallel within 0.5	Fuel Filler Door U/F - 0.5 +/- 0.5
13	B-pillar Side Molding to Middle Panel/Sliding Door Body Side Molding	10.5 +/- 3.0	B-pillar Body Side Molding O/F 0.0 + 1.5/- 0.0
14	Front Door Body Side Molding to B-pillar Body Side Molding	10.5 +/- 2.0	Front Door Body Side Molding O/F 0.0 + 1.5 /- 0.0
15	Wheel Opening Molding to Door Wheel Flare Molding	10.5 +/- 1.5	Front Door Molding U/F 0.0 + 0.5 /- 1.5
16	Front Fender to Front Door	5.5 +/- 1.0	Front Fender O/F 0.0 + 1.5 /- 0.0
17	Front Fender Wheel Flare Molding to Front Fascia Side	-	Front Fender Molding U/F - 1.0 +/- 0.5
18	Front Fender to Headlamp Filler (Lower)	1.0 +/- 1.0	Front Fender U/F - 1.0 +/- 0.5
19	Front Fascia Side / Front Fascia Center	4.5 +/- 1.0 Parallel within 1.0	-
20	Right Rear Door to Left Rear Door	7.0 +/- 1.0 Parallel within 1.0	0.0 + 1.5
21	Rear Door to D-pillar	6.5 + 1.0 /- 1.5 Parallel within 1.5	-
22	Rear Door to Roof Header	5.0 +/- 2.0	-
23	Taillamp to Body Side	2.5 +/- 1.0	Taillamp U/F - 3.0 +/- 1.0
24	Sliding Door to Roof Side Panel	5.0 +/- 1.5	-
25	Sliding Door to B-pillar	5.5 +/- 1.5	B-pillar O/F 0.0 +/- 1.0
26	Front Door Wheel Flare Molding to Fender Wheel Flare Molding	6.0 +/- 1.0	Fender Wheel Flare Molding O/F + 1.5 /- 0.0
27	Front Door and Siding Door to Sill Panel	6.0 +/- 1.5	-
28	Sliding Door to Body Side Panel	5.0 +/- 1.5	Sliding Door O/F 0.0 + 1.5 /- 0.0 Parallel within 1.0
29	Rear Wheel Flare Molding to Rear Body Side Molding	2.5 +/- 1.0	Wheel Flare Molding O/F 0.5 + 0.0 /- 0.5
30	Rear Body Side Molding to D-Pillar Molding	5.0 +/- 2.0	0.0 +/- 1.0 Parallel within 1.0
31	Rear Bumper Molding to D-pillar Molding	7.0 +/- 2.0	-
32	Taillamp to D-pillar Molding	3.0 +/- 1.5	-
33	Rear Door Molding to Rear Bumper Molding	5.0 +/- 2.0	-
