Removal - Bulb - Turn Signal Lamp

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the front lamp assembly. Refer to UNIT, FRONT LAMP, REMOVAL .

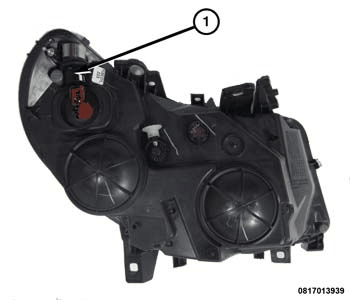

    GC0160579Courtesy of CHRYSLER GROUP, LLC
  3. Rotate the turn signal lamp bulb socket (1) counter-clockwise and remove it from the front lamp assembly.
  4. Remove the turn signal lamp bulb.
