Removal - Bulb - DRL

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the front lamp assembly. Refer to UNIT, FRONT LAMP, REMOVAL .

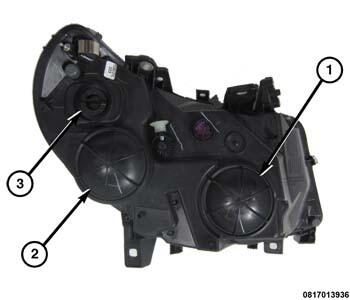

    GC0160707Courtesy of CHRYSLER GROUP, LLC
  3. Remove the high beam bulb access cover (1) by rotating the cover counter-clockwise.

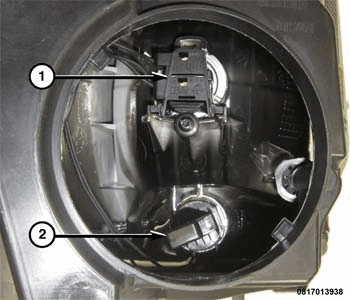

    GC0160347Courtesy of CHRYSLER GROUP, LLC
  4. Rotate the Daytime Running Lamp (DRL) bulb socket (2) counter-clockwise and remove it from the front lamp assembly.
  5. Remove the DRL bulb from the bulb socket.
