Lamp, Tail: Removal: Bulbs

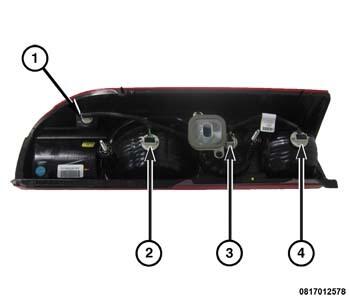

| Tail Lamp Bulb Locations | |
|---|---|
| 1 | Side marker lamp |
| 2 | Turn Signal Bulb |
| 3 | Brake Lamp Bulb |
| 4 | Reverse Lamp Bulb |
- Remove the tail lamp unit. Refer to LAMP, TAIL, REMOVAL .
- Disconnect the wire harness electrical connector.
- Remove the bulb socket from tail lamp unit by rotating the socket a quarter turn counterclockwise.
- Remove the socket from the tail lamp unit.
- Remove the bulb from the socket.
