Home >> Dodge and Ram >> 2021 >> ProMaster 2500 >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lamps/Lighting - Exterior (Service Information) >> Lamp, Clearance, Rear >> Removal

Lamp, Clearance, Rear: Removal

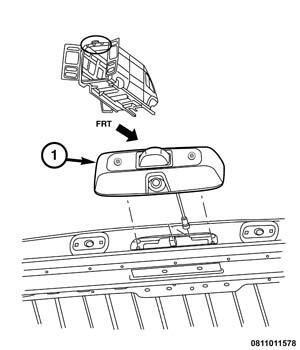

GC0160708Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the fasteners from the appropriate rear clearance lamp (1) unit.
  3. Disconnect the rear camera wire harness connector and the rear lighting wire harness connector from the back of the rear clearance lamp.
  4. Remove the rear clearance lamp from the vehicle.
