Bottle, Pressurized Coolant: Removal: 3.6L

  1. Partially drain the cooling system. Refer to DRAINING

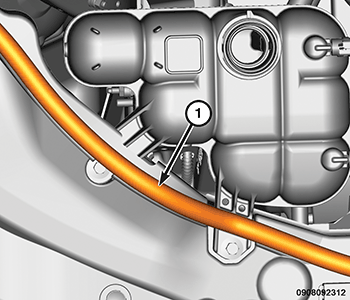

    GC0173667Courtesy of CHRYSLER GROUP, LLC
  2. Disengage the hood seal (1) and position aside.

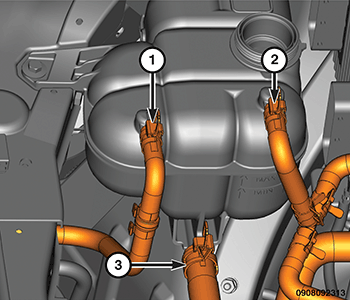

    GC0173549Courtesy of CHRYSLER GROUP, LLC
  3. Remove the coolant vent hose (1).
  4. Remove the coolant inlet hose (2).
  5. Remove the coolant outlet hose (3).

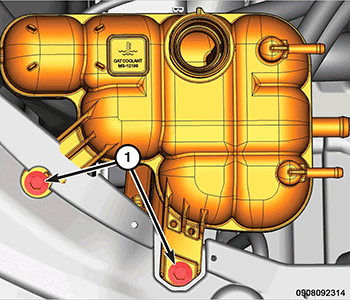

    GC0173696Courtesy of CHRYSLER GROUP, LLC
  6. Remove the bolts (1) and the pressurized coolant bottle.
