Valve, Exhaust Gas RECIRCULATION (EGR): Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install a NEW  gasket onto the EGR valve.
  2. Install the EGR valve.
    GC0192165Courtesy of CHRYSLER GROUP, LLC

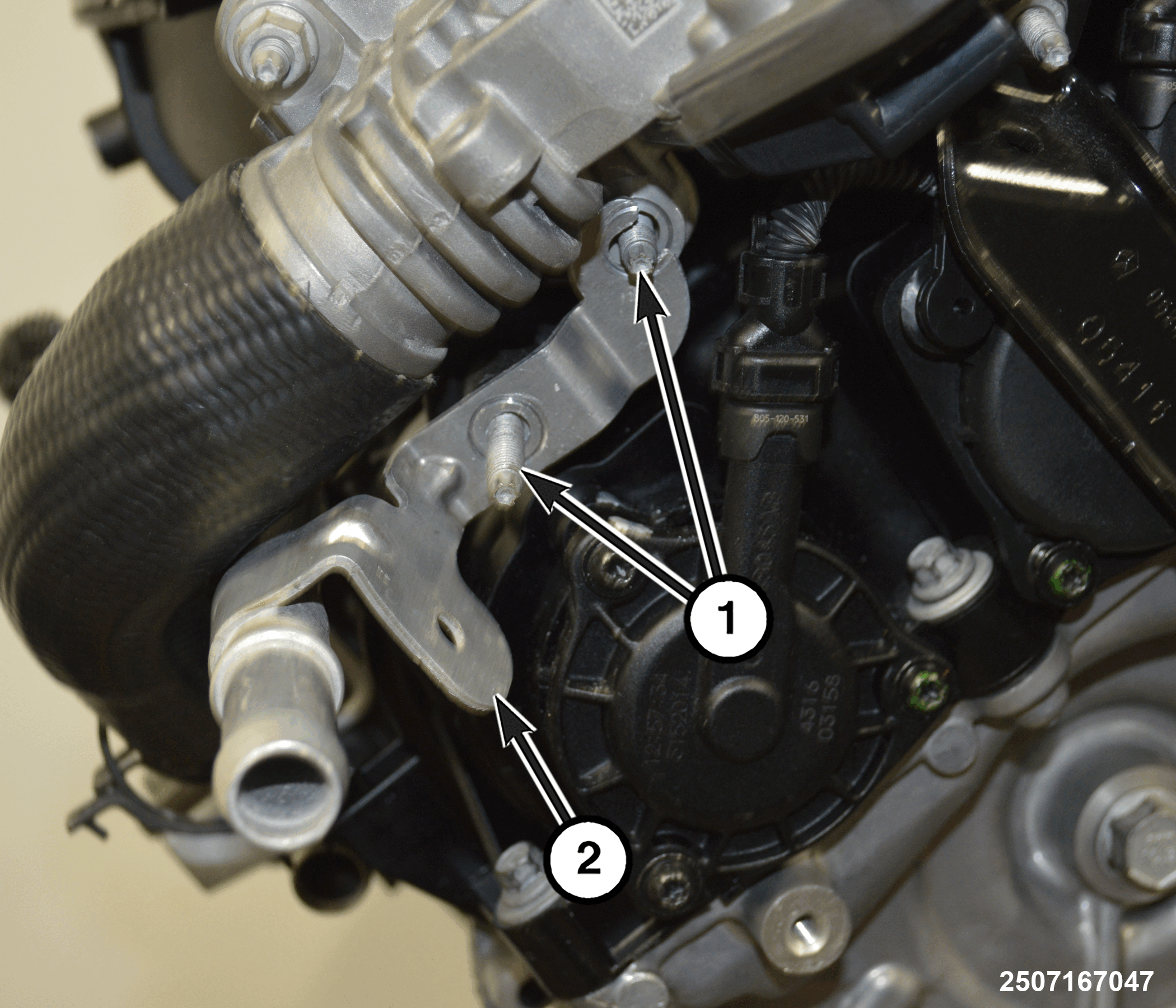

  3. Position the EGR cooler tube bracket (2) on the studs (1). Install the EGR cooler tube bracket nuts and tighten. Refer to EXHAUST GAS RECIRCULATION, TECHNICAL SPECIFICATIONS .
    GC0173585Courtesy of CHRYSLER GROUP, LLC

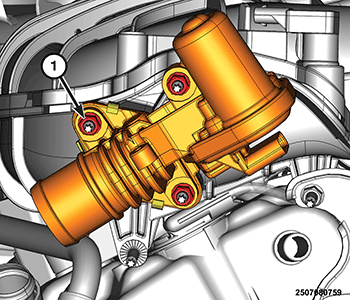

  4. Tighten the nuts (1) to the proper torque specfications. Refer to EXHAUST GAS RECIRCULATION, TECHNICAL SPECIFICATIONS .
    GC0173683Courtesy of CHRYSLER GROUP, LLC

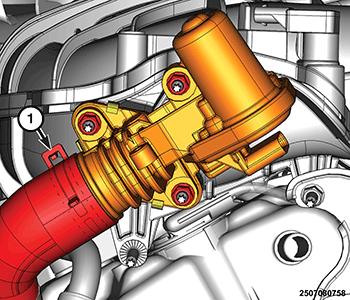

  5. Connect the EGR cooler hose (1) to the EGR valve and secure the clamp.
  6. Connect the EGR valve wire harness connector.
  7. Install the EGR cooler tube bracket.
  8. Install the EGR cooler tube bracket fasteners and tighten to the proper torque specfications. Refer to EXHAUST GAS RECIRCULATION, TECHNICAL SPECIFICATIONS .
  9. Install the engine cover. Refer to COVER, ENGINE, INSTALLATION .
  10. Connect the negative battery cable.
