Cooler, Exhaust Gas RECIRCULATION (EGR): Installation

WARNING: This page is about a different variant/trim than selected.
  1. Clean the gasket mating surfaces.
    GC0173547Courtesy of CHRYSLER GROUP, LLC

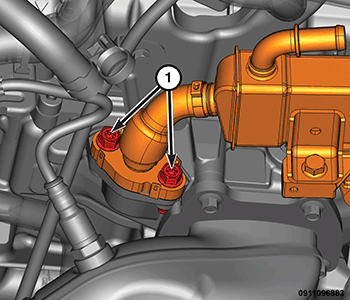

  2. Using a NEW  gasket, install the EGR cooler and tighten the inlet flange bolts (1) to the proper torque specfications. Refer to EXHAUST GAS RECIRCULATION, TECHNICAL SPECIFICATIONS .
    GC0173801Courtesy of CHRYSLER GROUP, LLC

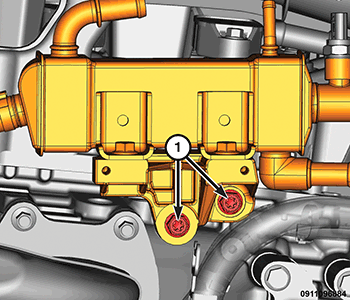

  3. Install the lower bolts (1) securing the EGR cooler and tighten to the proper torque specfications. Refer to EXHAUST GAS RECIRCULATION, TECHNICAL SPECIFICATIONS .
    GC0173637Courtesy of CHRYSLER GROUP, LLC

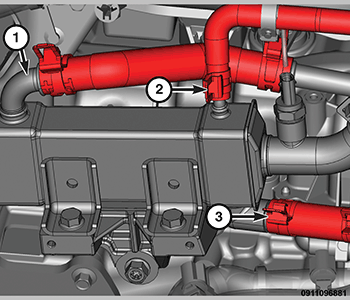

  4. Install the outlet coolant hose (3) to the EGR cooler.
  5. Install the inlet from pressurized coolant bottle hose (2), to the EGR cooler.
    GC0173743Courtesy of CHRYSLER GROUP, LLC

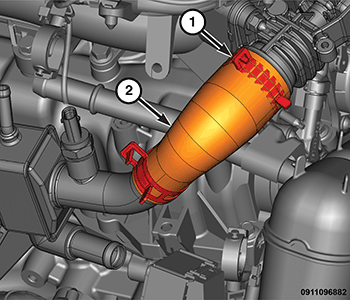

  6. Install the EGR inlet tube (2) to the EGR cooler (1).
    GC0173589Courtesy of CHRYSLER GROUP, LLC
  7. Connect the EGR temperature sensor wire harness connector (1).
  8. Install the generator. Refer to 3.6L .
  9. Fill the cooling system. Refer to COOLANT SYSTEM AIR EVACUATION
  10. Install the engine cover. Refer to COVER, ENGINE, INSTALLATION .
  11. Connect the negative battery cable.
