Valve, Positive Crankcase Ventilation (PCV): Removal: 3.6L
WARNING: This page is about a different variant/trim than selected.
REMOVAL
 Courtesy of CHRYSLER GROUP, LLC
|

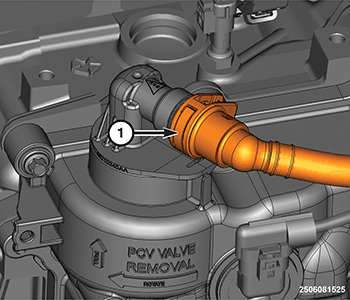

- Push in on the tab (1) to release the quick disconnect and remove the hose from the PCV valve.
 Courtesy of CHRYSLER GROUP, LLC
|

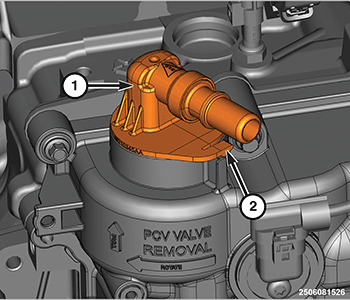

- Release the lock tab (2) and turn the PCV valve (1) clockwise and pull out to remove from the right cylinder head cover.
