Valve, Positive Crankcase Ventilation (PCV): Installation: 3.6L

WARNING: This page is about a different variant/trim than selected.

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

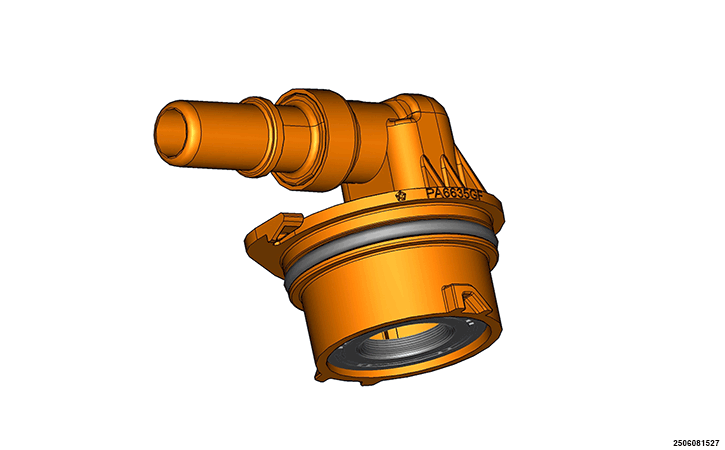

Clean and inspect the sealing surfaces of the PCV valve and cylinder head cover. Lubricate the O-ring seal with clean engine oil.

Courtesy of CHRYSLER GROUP, LLC
Install the PCV valve (1) into the cylinder head cover and turn counter clockwise until the lock (2) engages in place.

Courtesy of CHRYSLER GROUP, LLC
Install the PCV hose (1) onto the PCV valve.
