Valve, Positive Crankcase Ventilation (PCV): Removal: 3.6L
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|
- Remove the engine cover (1).
 Courtesy of CHRYSLER GROUP, LLC
|

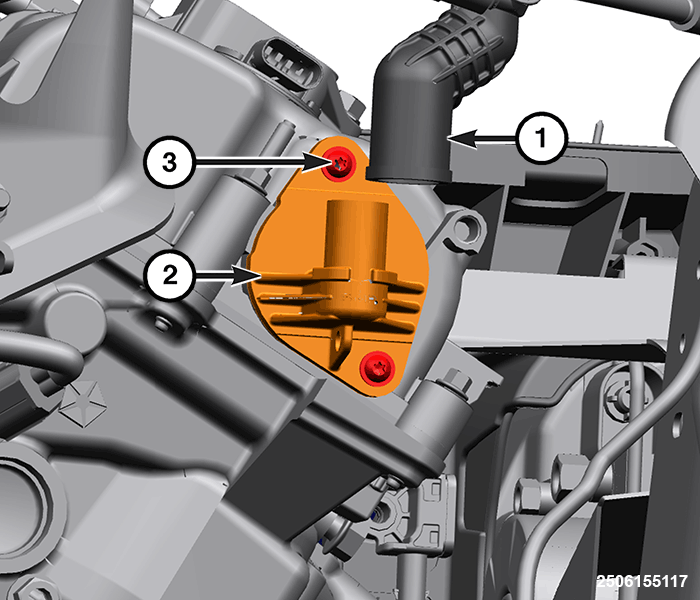

- Remove the hose (1) from the PCV valve (2).
- Remove the two screws (3) and the PCV valve (2) from the right cylinder head cover.
