Sensor, Manifold Air Pressure (Map): Removal: 5.7L/6.4L

WARNING: This page is about a different variant/trim than selected.

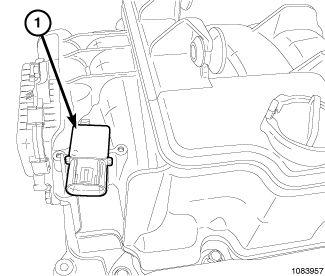

GC0104841Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect Map sensor (1) electrical connector.
  2. Rotate MAP sensor (1) counterclockwise for removal.

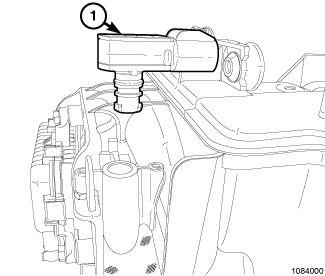

    GC0104842Courtesy of CHRYSLER GROUP, LLC
  3. Lift MAP sensor (1) upward.
    GC0104843Courtesy of CHRYSLER GROUP, LLC
  4. Inspect O-ring (2) for damage.
