Injector(S), Fuel: Removal: 5.7L/6.4L
WARNING: This page is about a different variant/trim than selected.

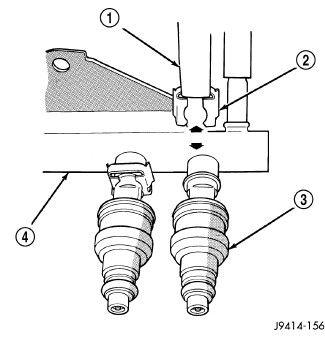

| 1 - PLIERS |
| 2 - INJECTOR CLIP |
| 3 - FUEL INJECTOR - TYPICAL |
| 4 - FUEL RAIL - TYPICAL |
- Remove the fuel rail assembly. Refer to RAIL, FUEL, REMOVAL .
- Using suitable pliers (1), remove the fuel injector retaining clip (2).
- Remove the fuel injector (3) from the fuel rail (4) using a side to side motion while pulling the injector out of the fuel rail assembly.
