Pick-Up, Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.

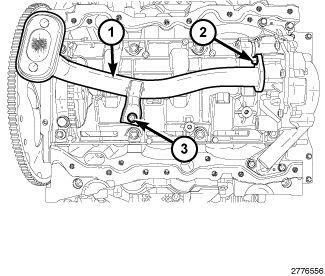

GC0145016Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the oil pan. Refer to PAN, OIL, REMOVAL .
  3. Remove the bolt (3) from the oil pump pick-up tube support bracket.
  4. Remove the bolt (2) from the oil pick-up tube and remove the oil pick-up tube (1) from the oil pump.
    GC0145015Courtesy of CHRYSLER GROUP, LLC
  5. Remove and discard the O-ring seal (1) from the oil pick-up tube.
