Pan, Oil: Installation: Upper

WARNING: This page is about a different variant/trim than selected.
GC0145012Courtesy of CHRYSLER GROUP, LLC
  1. Clean the upper and lower oil pans, timing chain cover, rear seal retainer and engine block mating surfaces with isopropyl alcohol in preparation for sealant application.
    CAUTION:

    Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Threebond Engine RTV Sealant may result in engine fluid leakage.

    CAUTION:

    Following the application of Mopar® Threebond Engine RTV Sealant to the gasket surfaces, the components must be assembled within 10 minutes and the attaching fasteners must be tightened to specification within 45 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.

  2. Apply a 3 to 4 mm wide bead of Mopar® Threebond Engine RTV Sealant next to the chamfer of the upper oil pan as shown in the following locations:
    • Oil pan to engine block flange (1)
    • Two timing cover to engine block T-joints (2)
    • Two rear seal retainer to engine block T-joints (3)
    GC0145010Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    Make sure that the rear face of the oil pan is flush to the transmission bell housing before tightening any of the oil pan mounting bolts. A gap between the oil pan and the transmission could crack the oil pan or transmission casting.

  3. Install the oil pan to the engine block and flush to the transmission bell housing. Secure the oil pan to the engine block with nineteen M8 oil pan mounting bolts (1) finger tight.
    GC0144171Courtesy of CHRYSLER GROUP, LLC
  4. Install four transmission to the engine oil pan bolts (1) and tighten to 55 N.m (41 ft. lbs.).
    GC0145010Courtesy of CHRYSLER GROUP, LLC
  5. Tighten the nineteen previously installed M8 oil pan mounting bolts (1) to 25 N.m (18 ft. lbs.).
    GC0145009Courtesy of CHRYSLER GROUP, LLC
  6. Install two M6 bolts (1) to the rear oil seal retainer flange and tighten to 12 N.m (106 in. lbs.).
    GC0145023Courtesy of CHRYSLER GROUP, LLC
  7. Install two rubber plugs (1) covering the rear oil seal retainer flange bolts.

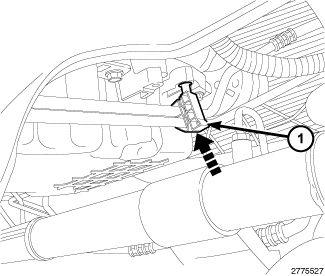

    GC0145014Courtesy of CHRYSLER GROUP, LLC
  8. Clip the transmission cooler line retainer (1) to the oil pan flange.
  9. Install the steering gear. Refer to GEAR, INSTALLATION .

    If equipped with AWD, install the front axle. Refer to INSTALLATION .

  10. Install the lower oil pan. Refer to PAN, OIL, INSTALLATION .
  11. Install the front skid plates, if equipped. Refer to INSTALLATION
    GC0144400Courtesy of CHRYSLER GROUP, LLC
  12. Lower the vehicle.
  13. Install the oil level indicator (2) with bolt (1) tightened 12 N.m (106 in. lbs.).
  14. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to STANDARD PROCEDURE - ENGINE OIL AND FILTER CHANGE  .
  15. Connect the negative battery cable.
  16. Run the engine until it reaches normal operating temperature and then check for any leaks.
