Air Cleaner: Installation
WARNING: This page is about a different variant/trim than selected.
 Courtesy of CHRYSLER GROUP, LLC
|
- Install the air cleaner element (3) into the air cleaner housing.
- Position the cover (1) so that the alignment tabs insert into the lower housing (2).
 Courtesy of CHRYSLER GROUP, LLC
|

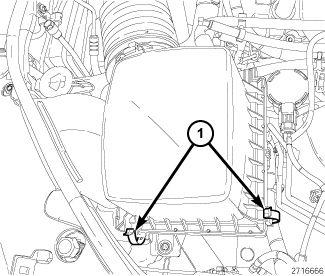

- Seat the cover onto the housing and secure the housing cover latches (1).
