Exhaust Manifolds

WARNING: This page is about a different variant/trim than selected.
GC0139402Courtesy of CHRYSLER GROUP, LLC
NOTE:

The left side shown. Right side similar.

  1. Disconnect the negative battery cable (1).

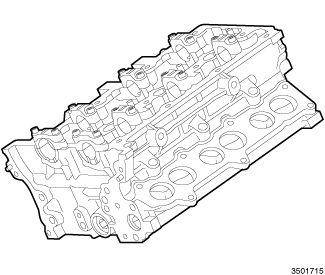

    GC0146790Courtesy of CHRYSLER GROUP, LLC
  2. Remove the cylinder head. Refer to CYLINDER HEAD, REMOVAL .

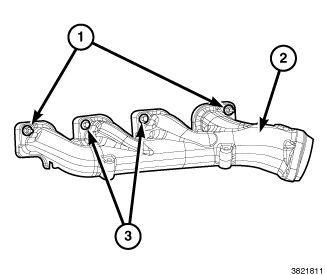

    GC0153868Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The studs (1) are stainless steel and must be installed in the same location as removed.

  3. Remove the exhaust manifold (2) heat shields.
  4. Remove the upper stainless steel studs (1).
  5. Remove the upper bolts (3).

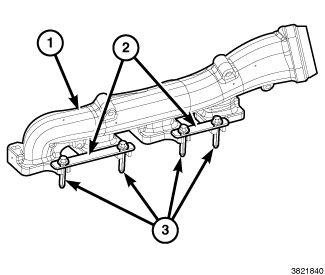

    GC0153869Courtesy of CHRYSLER GROUP, LLC
  6. Remove the exhaust manifold bottom row of bolts (3) and the tie bars (2).
  7. Discard the exhaust gasket.
