Solenoid, Variable Valve Timing (VVTS), Exhaust: Removal

WARNING: This page is about a different variant/trim than selected.

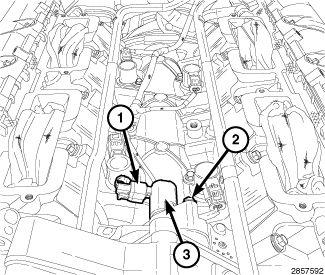

GC0144407Courtesy of CHRYSLER GROUP, LLC
  1. Remove the intake manifold. Refer to REMOVAL MANIFOLD, INTAKE, REMOVAL .
    NOTE:

    To remove the VVTS, the engine must be at room temperature.

  2. Disconnect the VVTS electrical connector (1).
  3. Remove the VVTS fastener (2).
  4. Rotate the VVTS (3) to break the seal then pull the oil control valve straight out.
