Sensor, Oil Temperature: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the generator. Refer to 6.4L
  2. Position the generator aside to gain access to the oil temperature sensor.

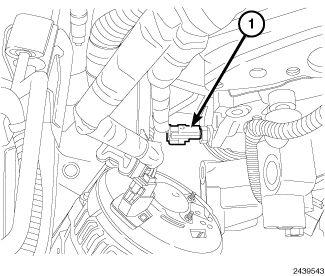

    GC0095588Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the oil temperature sensor wire harness connector (1).

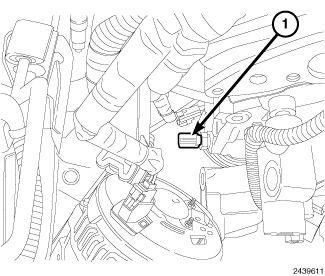

    GC0095589Courtesy of CHRYSLER GROUP, LLC
  4. Remove the oil temperature sensor (1).
