Sensor, Oil Pressure: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the generator. Refer to 6.4L
  2. Position the generator aside to gain access to the oil pressure sensor.
    GC0095586Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the oil pressure sensor wire harness connector (1).

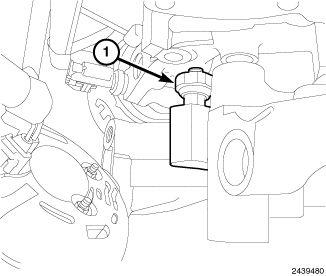

    GC0095587Courtesy of CHRYSLER GROUP, LLC
  4. Remove the oil pressure sensor (1).
