Cooler, Oil: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:

If the engine encounters a catastrophic failure, the engine oil cooler and lines must be replaced or damage to the new engine or components could result.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Whenever the oil cooler is serviced, the rubber O-ring seal must be replaced.

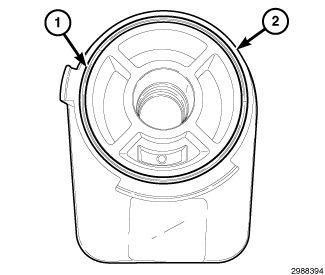

Clean the sealing surface of the oil cooler (2) and install a new rubber O-ring seal (1).
Lightly lubricate the oil cooler rubber O-ring seal (1) with clean engine oil.

Courtesy of CHRYSLER GROUP, LLC

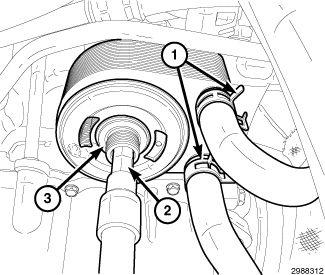

Using a 12 mm Allen Wrench socket (2), install the oil cooler retaining bolt (3) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
Position the cooling hoses and install the clamps (1).

Courtesy of CHRYSLER GROUP, LLC
Lightly lubricate the oil filter gasket with clean engine oil.
NOTE:
Do not over tighten the oil filter.

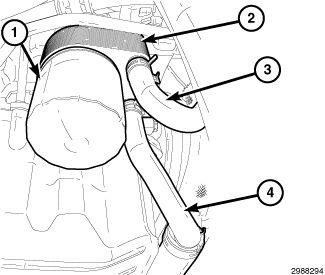

Thread the oil filter (1) onto the oil cooler (2) oil filter boss.
When the oil filter gasket makes contact with the oil cooler sealing surface, hand tighten the oil filter one half turn, or 180°.

Courtesy of CHRYSLER GROUP, LLC
Position the belly pan to the under side of the vehicle and install the retainers (1).
Lower the vehicle.
Fill the cooling system. Refer to COOLANT SYSTEM AIR EVACUATION
Start the engine and check for leaks.
Turn the engine off and check the oil level.
