Manual Transmission

WARNING: This page is about a different variant/trim than selected.

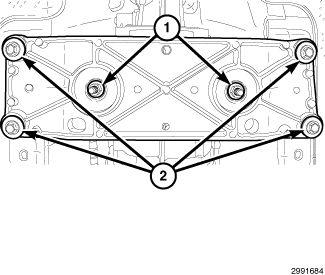

GC0144615Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle.
  2. Using a suitable jack, support the transmission.
  3. Remove the rear transmission mount isolator nuts (1).
  4. Remove the rear crossmember retaining bolts (2) and remove the crossmember.

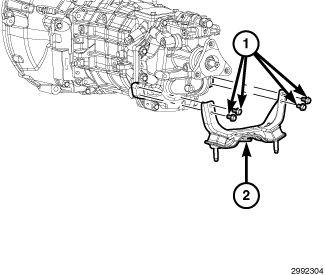

    GC0144616Courtesy of CHRYSLER GROUP, LLC
  5. Remove the rear transmission mount isolator (2) retaining bolts (1) and remove the isolator.
