Automatic Transmission

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

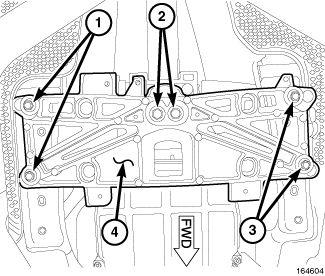

    GC0095619Courtesy of CHRYSLER GROUP, LLC
  2. Using a suitable jack, support the transmission.
  3. Remove the rear transmission mount isolator bolts (2).
  4. Remove the rear crossmember retaining bolts (1, 3) and remove the crossmember (4).

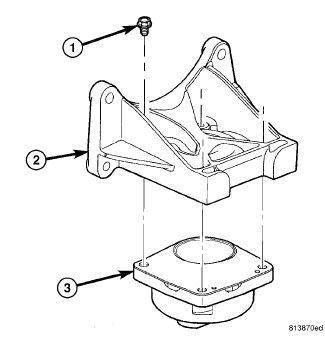

    GC0080320Courtesy of CHRYSLER GROUP, LLC
  5. Remove the rear transmission mount isolator (3) retaining bolts (1) and remove the isolator.
  6. If required, remove the rear transmission mount bracket (2) retaining bolts from the transmission and remove the bracket.
