Insulator, Engine Mount, Front: Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable (1).

Courtesy of CHRYSLER GROUP, LLC

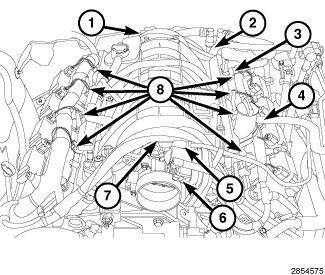

Remove the intake manifold. Refer to REMOVAL MANIFOLD, INTAKE, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

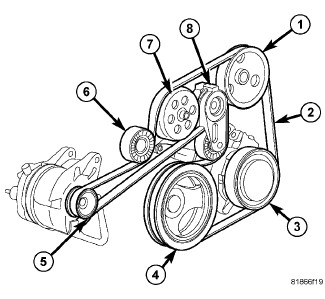

Remove the accessory drive belt. Refer to 5.7L/6.4L
Raise and support the vehicle.

Courtesy of CHRYSLER GROUP, LLC

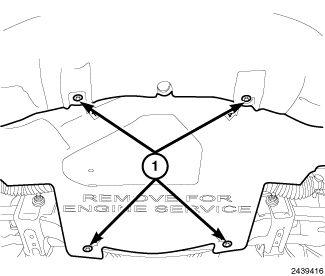

Remove the belly pan retainers (1) and remove the belly pan.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
The A/C system does not need to be evacuated or recharged for the A/C compressor positioning.
Disconnect and position aside the A/C compressor wiring harness.

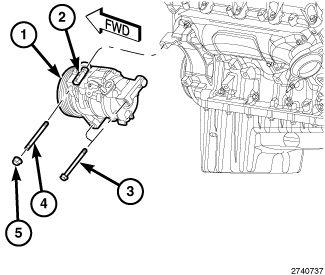

Remove the A/C compressor from the engine block and position aside.
Lower the vehicle.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Left side shown, right side similar.

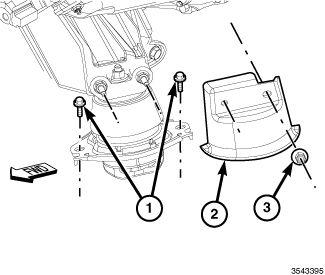

Remove left/right engine mount heat shield (3) retaining nuts (2) and remove the heat shields
Remove left/right engine mount lower retaining bolts (1).

Courtesy of CHRYSLER GROUP, LLC

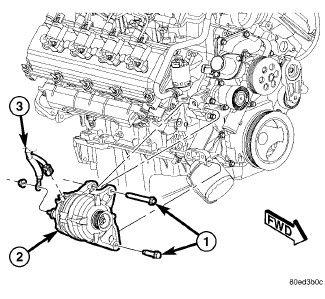

For the right side engine mount replacement. Remove the generator. Refer to 6.4L

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Do not use air tools to install the engine lift fixture.
Install the Engine Lift Fixture (special tool #8984C, Fixture, Engine Lifting) (1), Engine Lift Adapter (special tool #8984-UPD, Adapter, Engine Lift) (2) and the Engine Support Fixture (special tool #8534C, Fixture, Driveline Support) (3).
Raise the engine to provide clearance to remove the engine mounts.
Raise and support the vehicle.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Left side shown, right side similar.

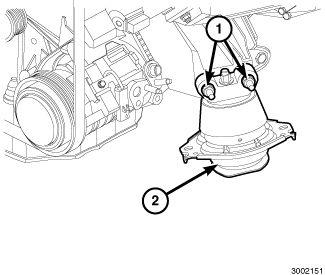

Remove left/right engine mount retaining bolts (1) and remove the engine mounts (2).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Left side shown, right side similar.

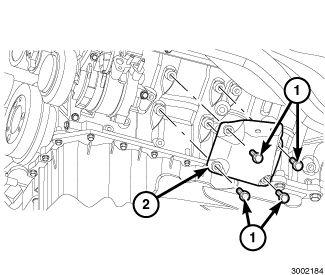

If necessary, remove engine mount to engine block mounting bracket retaining bolts (1) and remove the mounting brackets (2).
