Seal, Crankshaft Oil, Front: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the vibration damper. Refer to DAMPER, VIBRATION, REMOVAL .
    GC0080308Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Take note of the front oil seal orientation prior to removal.

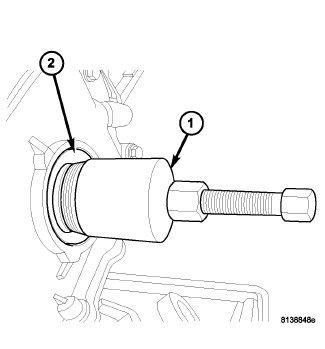

  2. Using the Seal Remover (special tool #9071, Remover, Seal) (1), remove the crankshaft front seal (2).
