Retainer, Crankshaft Rear Oil Seal: Installation

WARNING: This page is about a different variant/trim than selected.
GC0081773Courtesy of CHRYSLER GROUP, LLC
NOTE:

The crankshaft rear oil seal is integral to the crankshaft rear oil seal retainer and must be replaced as an assembly.

NOTE:

The crankshaft rear oil seal retainer can not be reused after removal.

  1. Thoroughly clean all gasket residue from the engine block.
  2. Position the gasket onto the new crankshaft rear oil seal retainer.
  3. Position the crankshaft rear oil seal retainer onto the engine block.

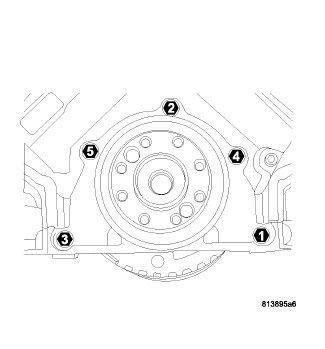

  4. Using the sequence shown, install the crankshaft rear oil seal retainer mounting bolts and tighten to 15 N.m (11 ft. lbs.).
  5. Install the oil pan. Refer to INSTALLATION
    GC0095614Courtesy of CHRYSLER GROUP, LLC

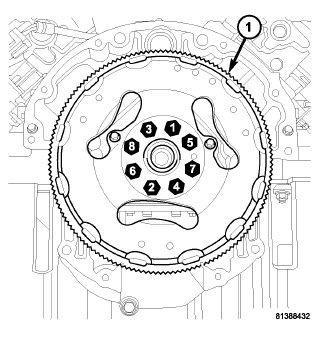

  6. Install the flexplate (1). Refer to FLEXPLATE, INSTALLATION .
  7. Install the transmission. Refer to INSTALLATION .
  8. Fill the crankcase with the specified type and amount of engine oil. Refer to STANDARD PROCEDURE - ENGINE OIL SERVICE  .
  9. Connect the negative battery cable.
  10. Start the engine and check for leaks.
