Cover(S), Cylinder Head: Removal

WARNING: This page is about a different variant/trim than selected.
GC0139402Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable (1).
    GC0148445Courtesy of CHRYSLER GROUP, LLC
  2. Remove the engine covers (1).

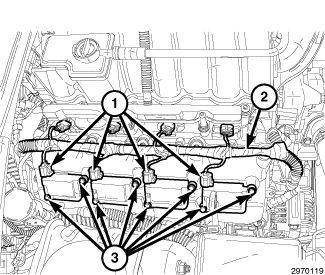

    GC0143844Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Right side shown, left side similar.

  3. Disconnect the ignition coil electrical connectors (1).
  4. Position the electrical harness (2) aside.
  5. Remove the ignition coil retaining bolts (3).
    GC0080076Courtesy of CHRYSLER GROUP, LLC
  6. Remove the ignition coils (1).

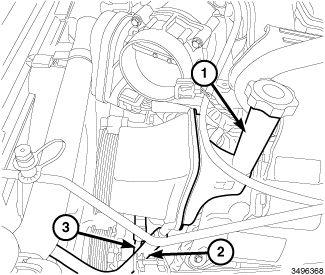

    GC0153844Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    If servicing the left side valve cover. The power steering pump needs to be removed. Draining of the power steering pump is not necessary.

  7. Remove the accessory drive belt. Refer to 5.7L/6.4L
  8. Remove the power steering pump (1) and position aside.
    GC0080292Courtesy of CHRYSLER GROUP, LLC
  9. Using the sequence shown, remove the cylinder head cover retaining bolts.

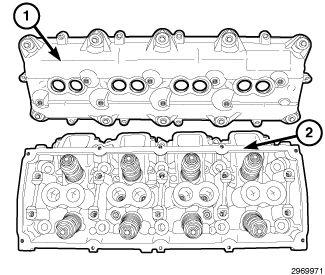

    GC0139403Courtesy of CHRYSLER GROUP, LLC
  10. Remove the cylinder head cover (1).
  11. Clean the sealing surface of the cylinder head (2).
NOTE:

The cylinder head cover gasket may be used again, provided no cuts, tears, or deformation have occurred.
