Coil, Ignition: Removal: 5.7L/6.4L

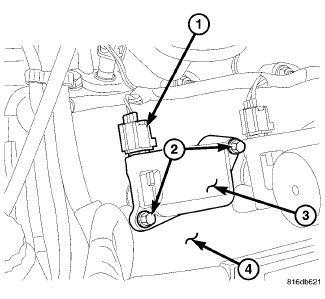

GC0082813Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover.
  3. Disconnect the electrical connector (1) from the coil (3).
  4. Clean the area at the base of the coil with compressed air before removal.
    NOTE:

    The ignition coil mounting bolts are retained in the ignition coil.

  5. Remove the two ignition coil mounting bolts (2).
    GC0080076Courtesy of CHRYSLER GROUP, LLC
  6. Carefully pull up the ignition coil (1) from the cylinder head cover.
  7. Remove ignition coil (1) from vehicle.
