3.6L Dual Exhaust

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Support the exhaust system using a suitable jack.
  3. Saturate the nuts with Mopar® Rust Inhibitor. Allow 5 minutes for penetration.
  4. Remove the left exhaust resonator. Refer to RESONATOR, EXHAUST, REMOVAL .

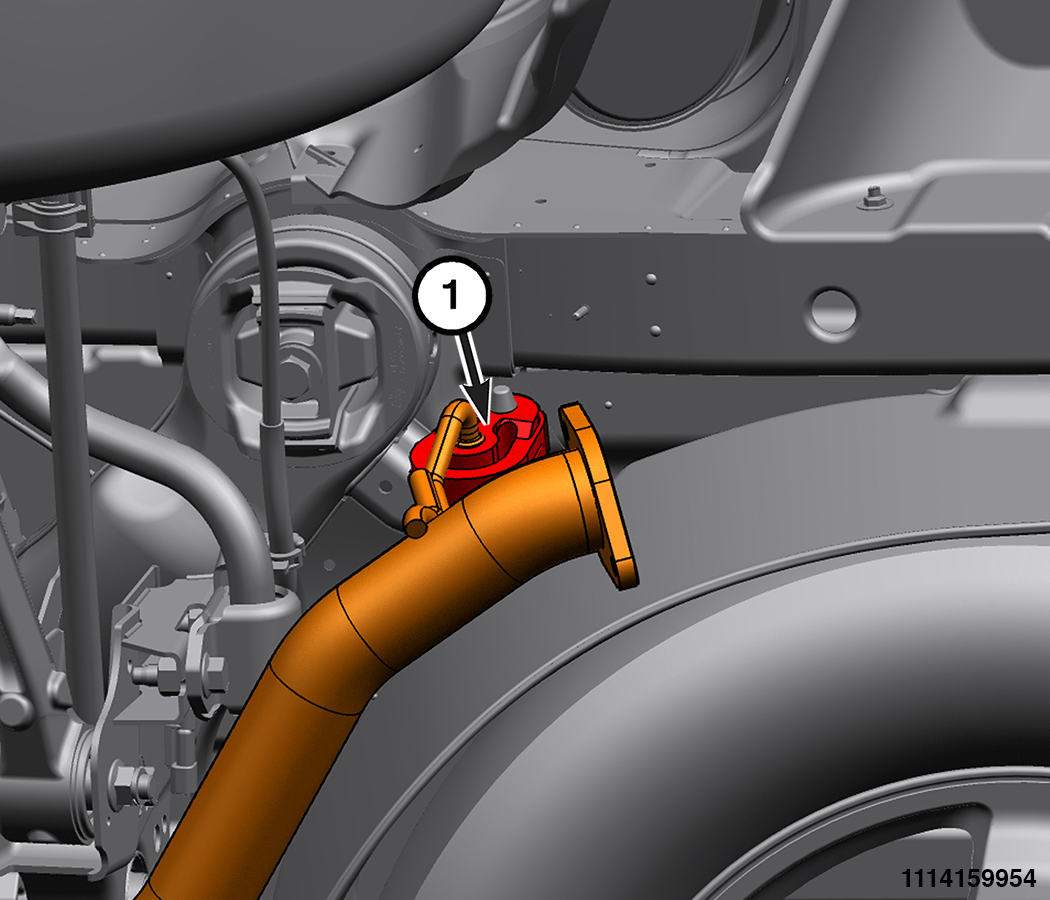

    GC0190447Courtesy of CHRYSLER GROUP, LLC
  5. Remove the left rear exhaust isolator (1).

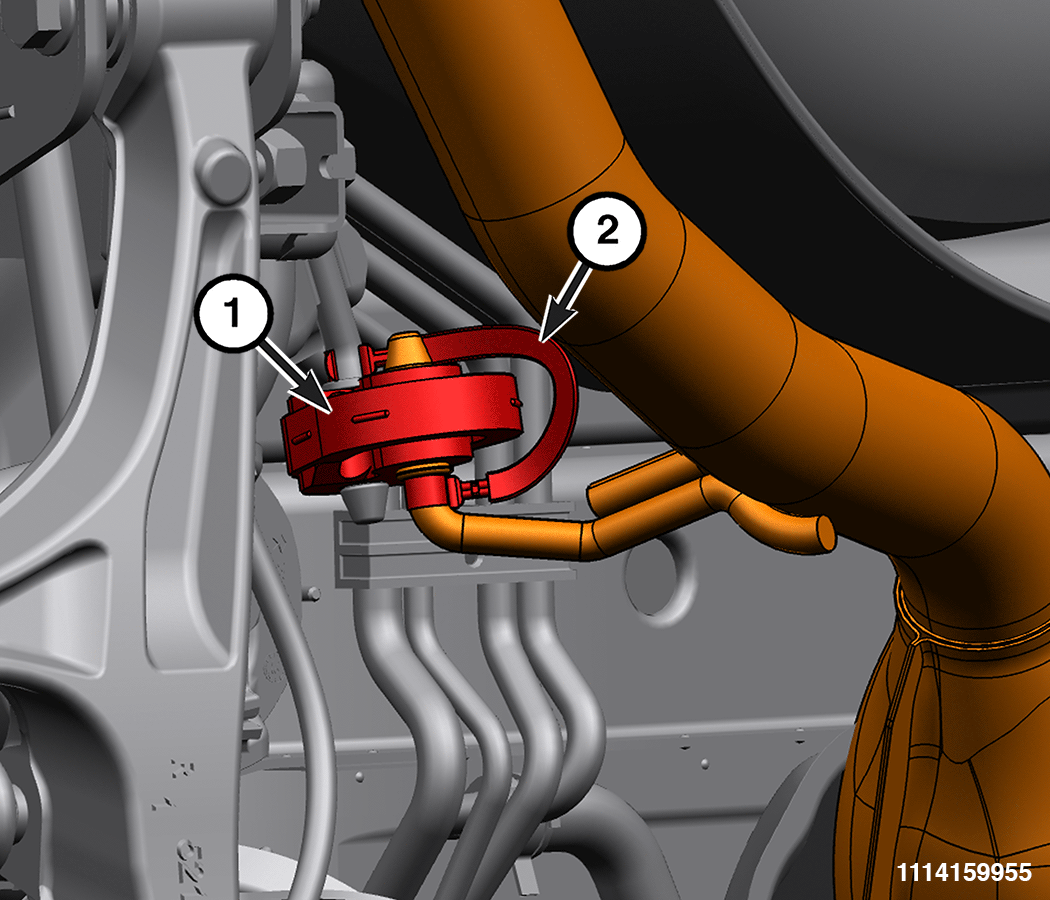

    GC0190520Courtesy of CHRYSLER GROUP, LLC
  6. Remove the ground strap (2).
  7. Remove the two rear exhaust isolators (1).

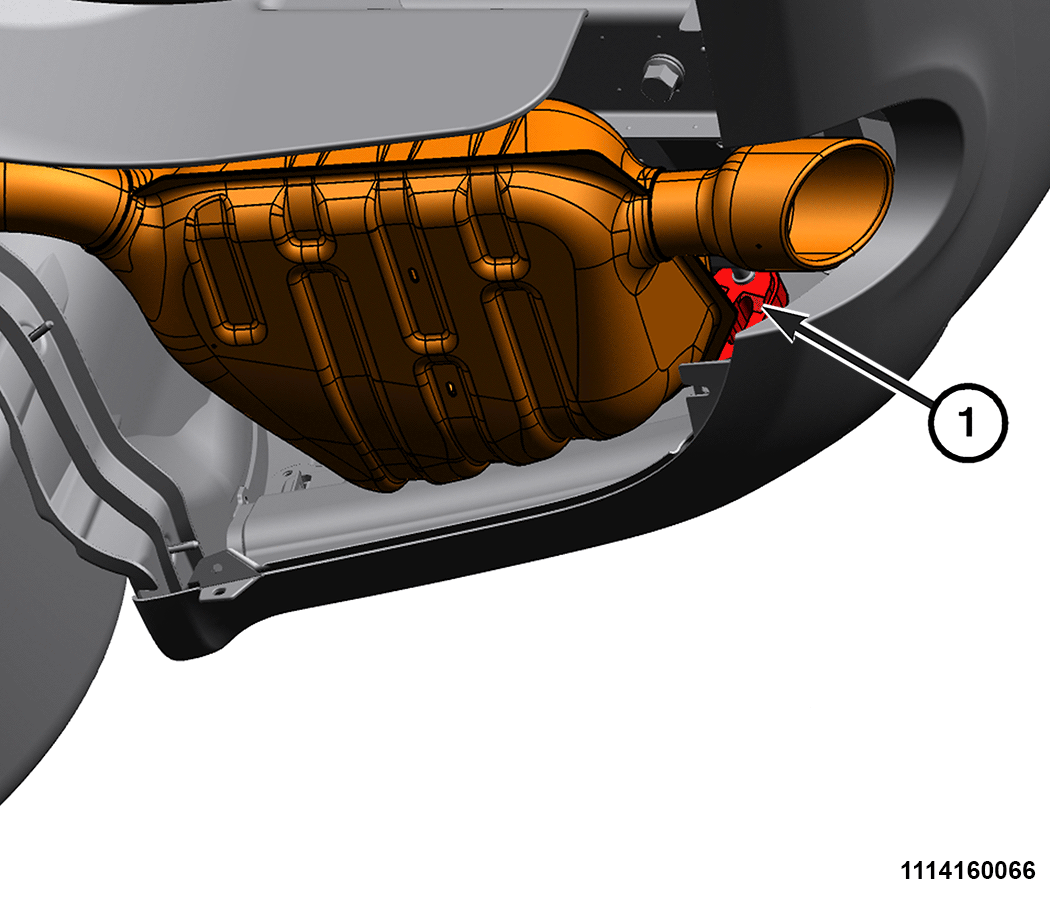

    GC0190443Courtesy of CHRYSLER GROUP, LLC
  8. Remove the exhaust isolators (1).

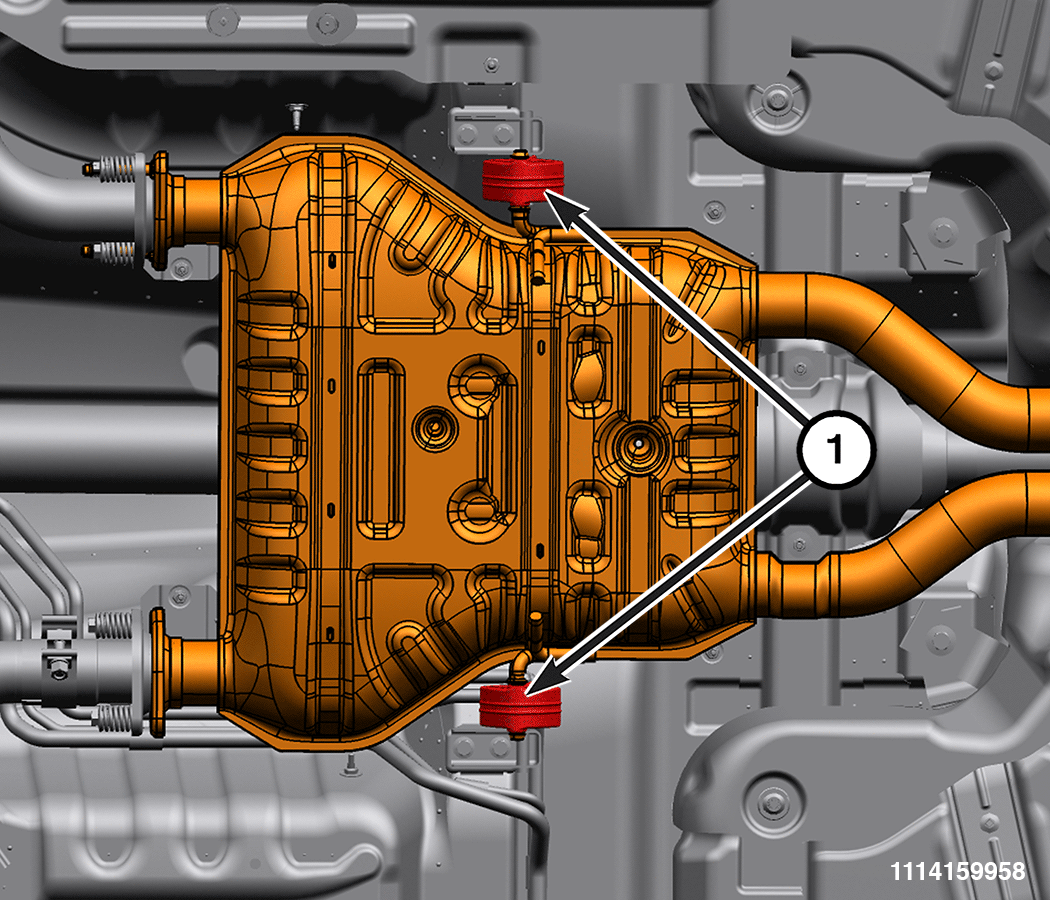

    GC0190504Courtesy of CHRYSLER GROUP, LLC
  9. Remove the two exhaust isolators (1) from the muffler.

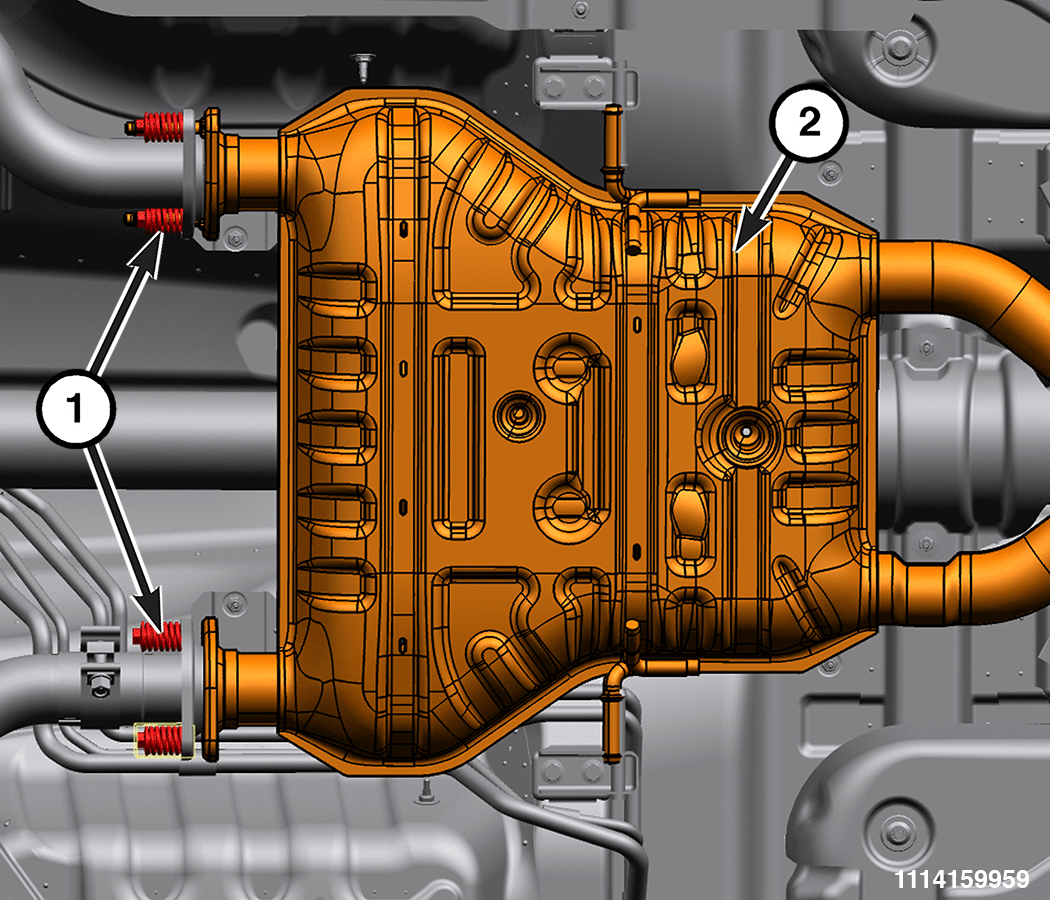

    GC0190432Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Muffler removal is a two-man operation.

  10. Remove the four spring nuts (1) and the muffler/tailpipe (2) assembly from vehicle.
