Muffler, Exhaust: Installation: 5.7L

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Muffler installation is a two-man operation.

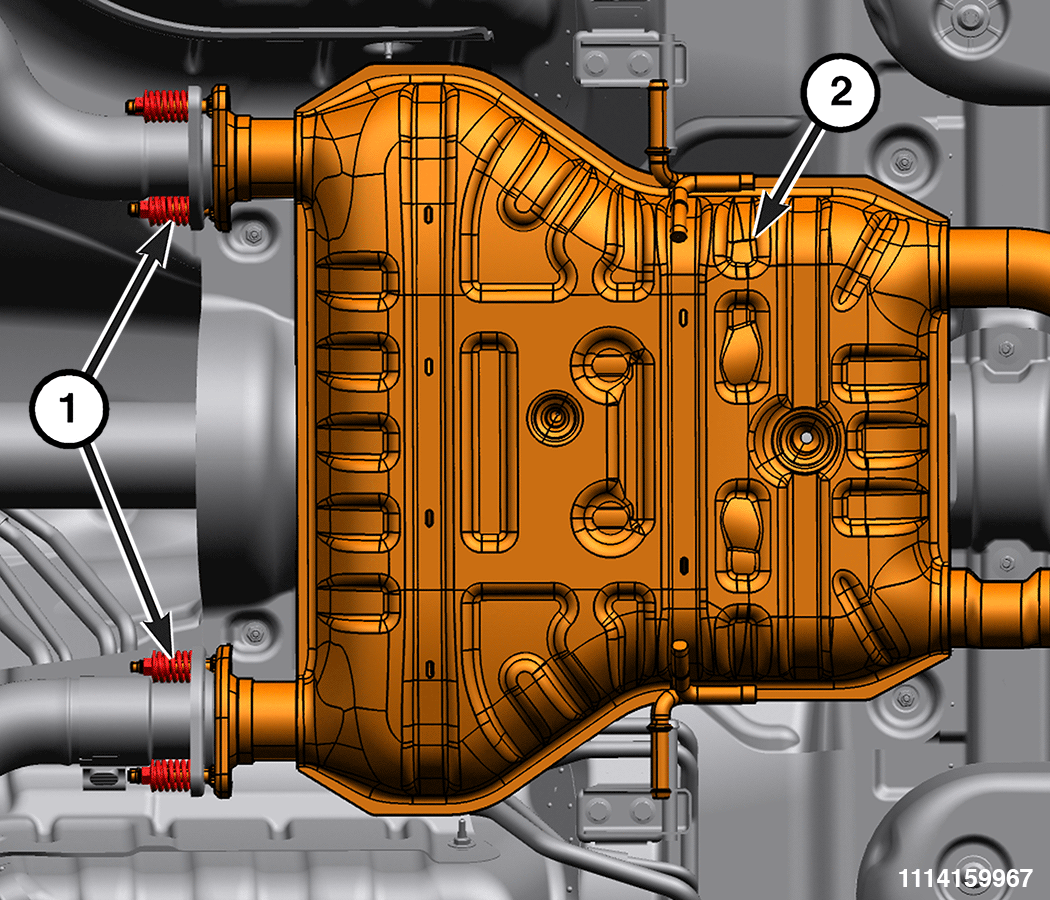

Install muffler and tailpipe (2) assembly in vehicle and tighten the four spring nuts (1) to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

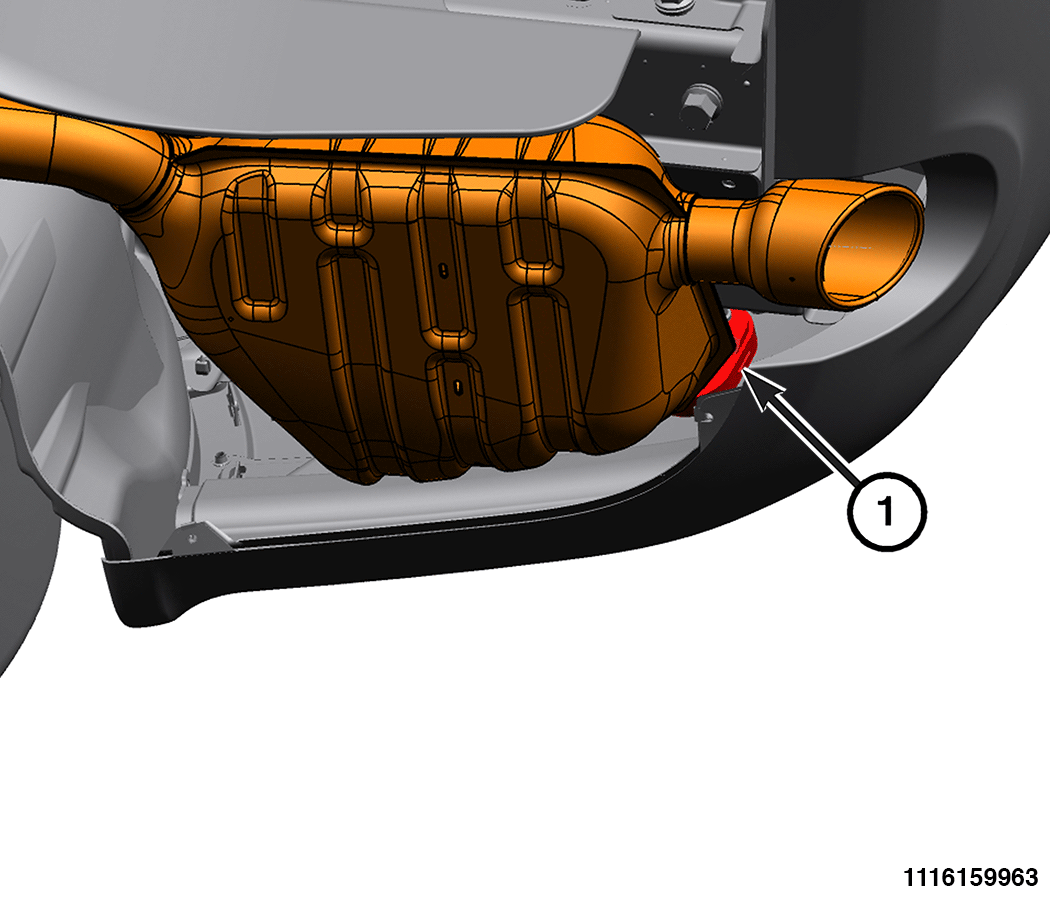

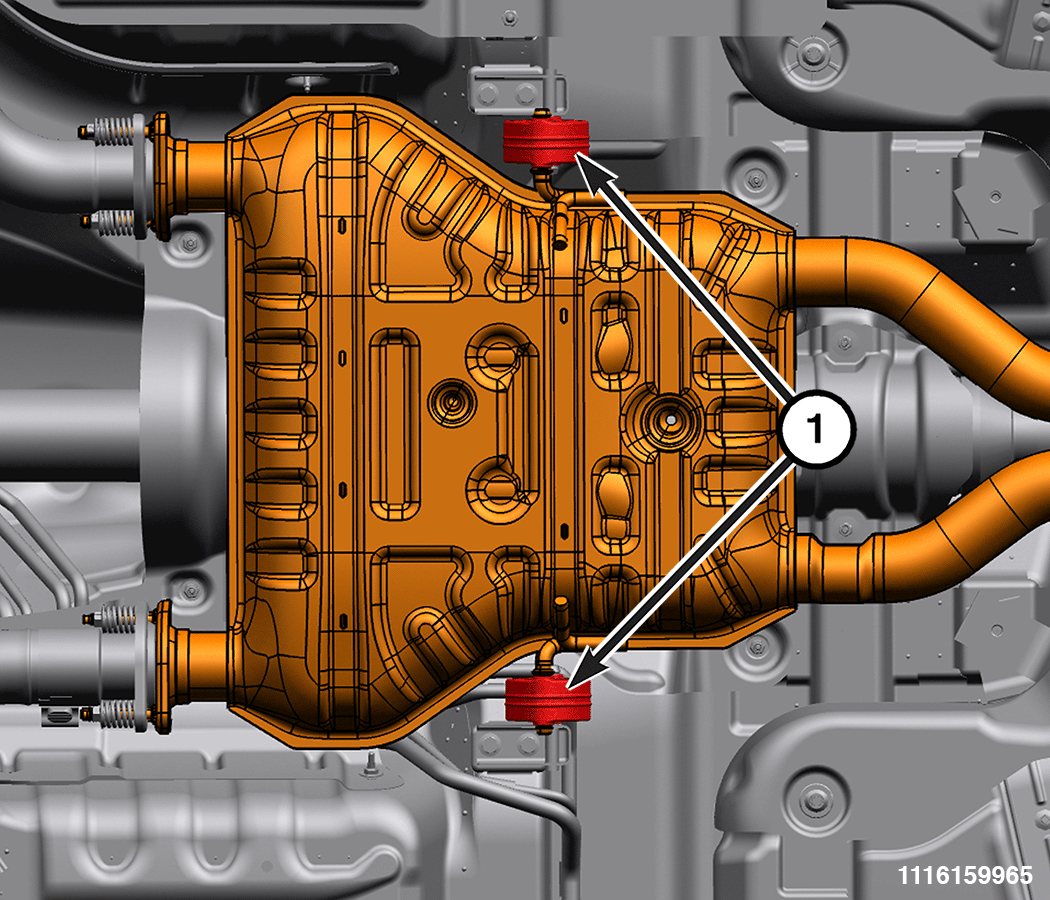

Install the two exhaust isolators (1) to the muffler.

Courtesy of CHRYSLER GROUP, LLC

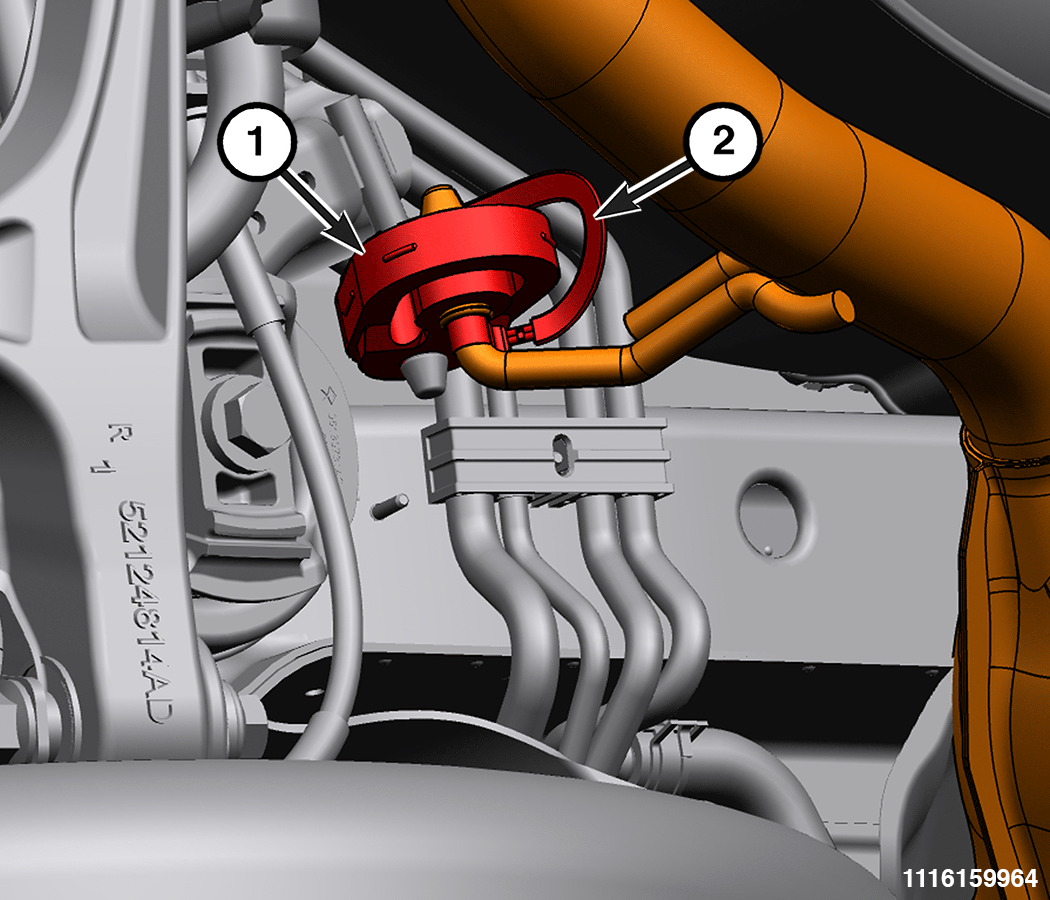

Install the rear exhaust isolators (1).
Install the ground strap (2).

Courtesy of CHRYSLER GROUP, LLC
Install the rear exhaust isolators (1).

Courtesy of CHRYSLER GROUP, LLC

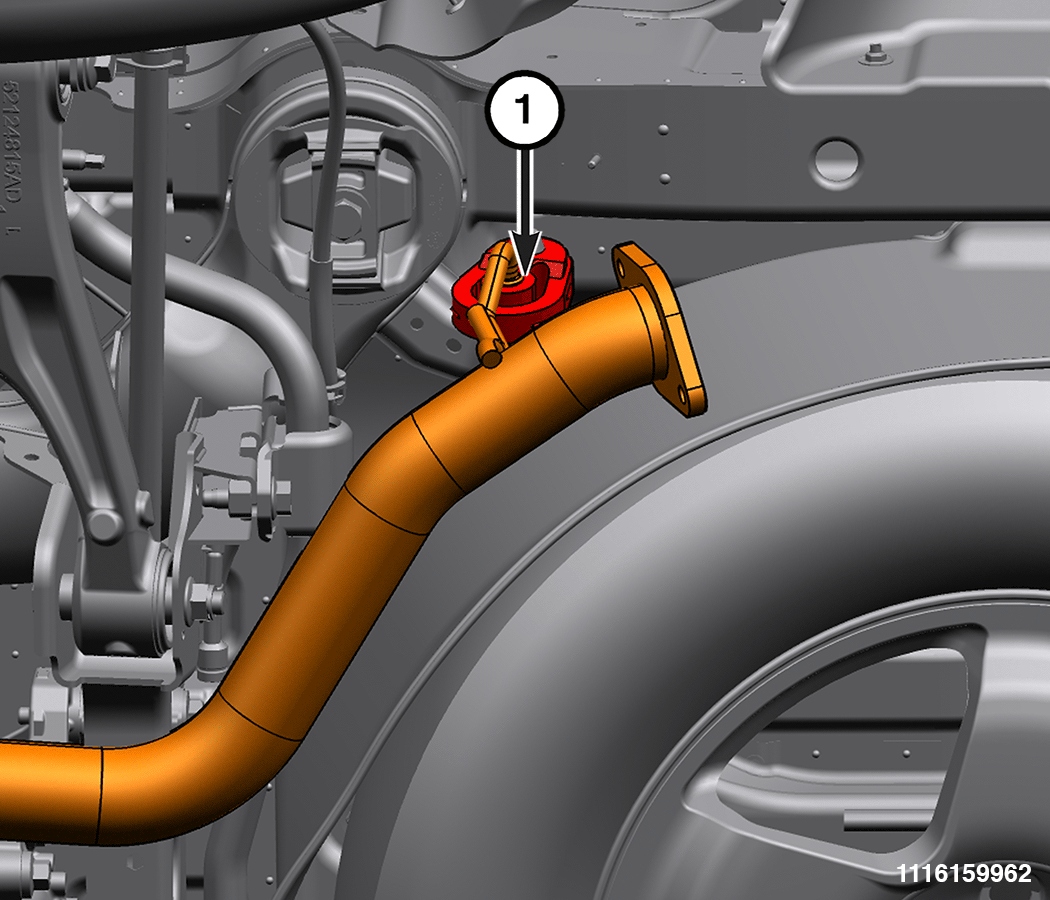

Install the left rear exhaust isolator (1).
Install the left exhaust resonator. Refer to RESONATOR, EXHAUST, INSTALLATION .
Make sure the muffler/tailpipe assembly is correctly positioned and the properly aligned. The minimum clearance between components is 25 mm (1 inch).
Remove the jack supporting the exhaust system.
Remove the support and lower the vehicle.
Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
