Panel, Cowl Trim, Side: Removal

Courtesy of CHRYSLER GROUP, LLC

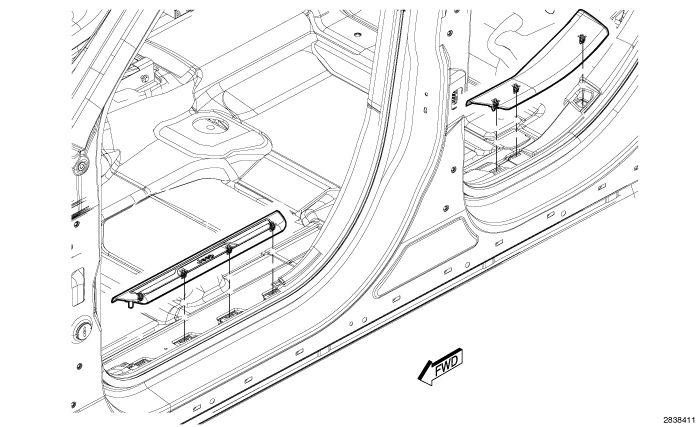

Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the retaining tabs that secure the door sill scuff plate to the retaining clips in the door sill and remove the scuff plate.

Courtesy of CHRYSLER GROUP, LLC

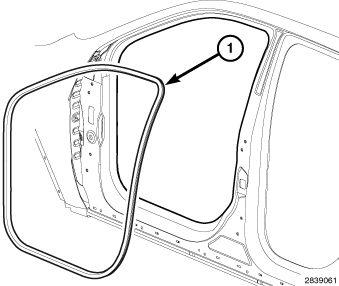

Separate the door seal (1) from the door frame and position aside.

Courtesy of CHRYSLER GROUP, LLC
Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the retaining clips (2) that secure the cowl trim (1) and remove the cowl trim panel.
