Load Floor, Cargo: Removal
CAUTION:
Failure to disconnect the wire harness connector from the antenna on the rear of the cargo load floor bin will result in damage to the antenna, antenna mounting or wire harness.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

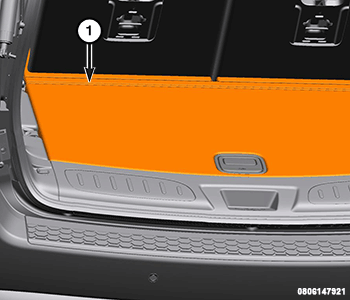

- Open and remove the load floor lid (1).

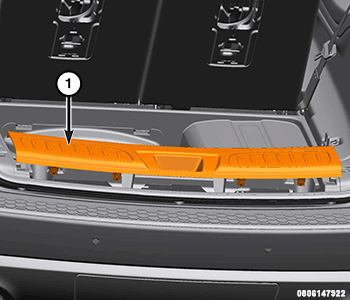

- Using trim stick (special tool #C-4755, Trim Stick) or equivalent, separate the retaining clips (1) and remove the lift-gate scuff plate (1).CAUTION:
Failure to disconnect the wire harness connector from the antenna on the rear of the cargo load floor bin will result in damage to the antenna, antenna mounting or wire harness.

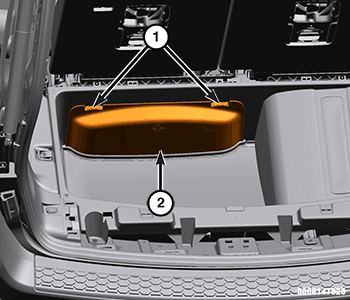

- Disconnect the wire harness connector (1).

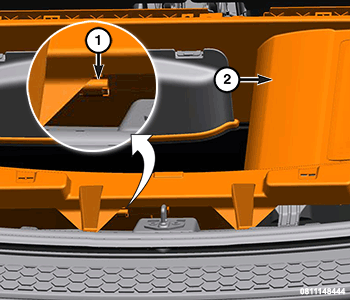

- Press the two tabs (1) down and pull out to remove jack cover (2).

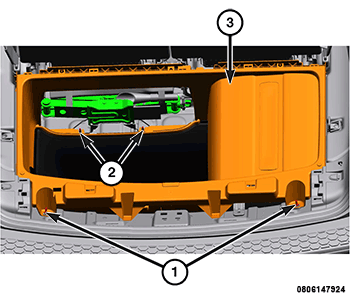

- Remove the rear nuts (1) to the load floor bin (3).
- Remove the vehicle emergency jack and tool kit, then remove the two nuts (2) for the jack hold down bracket securing the load floor bin.
- Remove the load floor bin (3) from the vehicle.
