Bezel, Instrument Panel, Center: Removal
multimedia:A supplement to the article is available.
CAUTION:
DO NOT pry against the face of the radio, or passenger side/ignition switch bezel applique surfaces. Only pry on the OUTER perimeter of the bezel.
- Before proceeding with the following repair procedure, review all warnings and cautions. Refer to INSTRUMENT PANEL, WARNING .

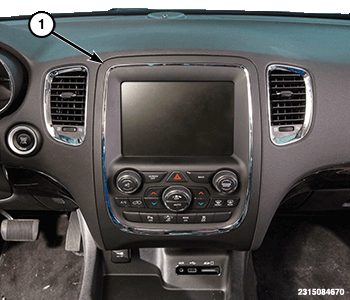

- Using a trim stick or equivalent, work around the perimeter of the bezel (1) and separate the bezel from the instrument panel.
- Disconnect the wire harness connectors and remove the bezel.
