Latch, Hood: Removal

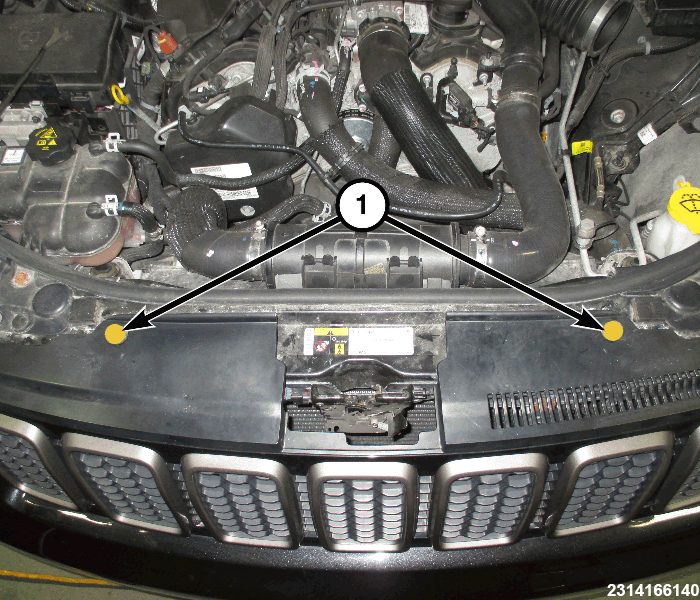

GC0192181Courtesy of CHRYSLER GROUP, LLC
  1. Open the hood and remove the push pin fasteners (1).

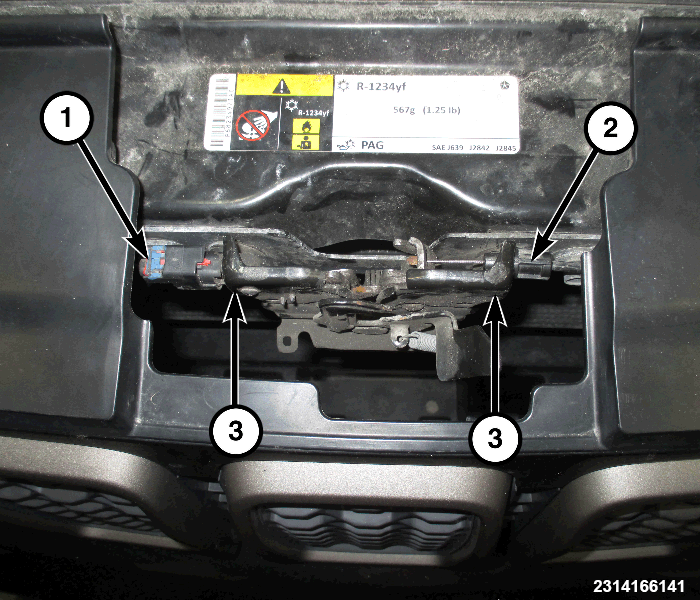

    GC0192211Courtesy of CHRYSLER GROUP, LLC
  2. Using a grease pencil or equivalent, mark the position of the hood latch on the upper radiator crossmember.
  3. Remove the fasteners (3) that secure the hood latch to the upper radiator crossmember.
  4. Disconnect the wire harness connector (1) and the release cable (2).
