Shield, Splash, Wheelhouse: Removal

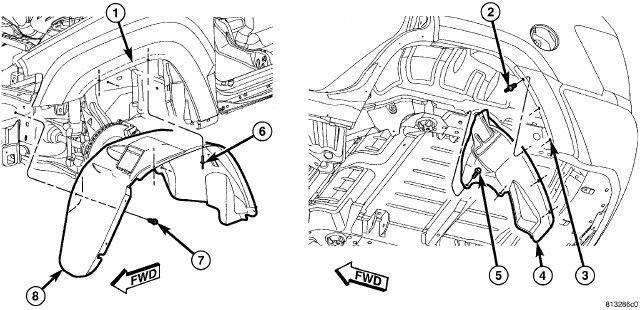

GC0119172Courtesy of CHRYSLER GROUP, LLC
1 - FENDER
2 - RIVETS
3 - REAR FASCIA
4 - QUARTER PANEL LINER
5 - SCREWS (2)
6 - RIVETS
7 - SCREWS (2)
8 - FENDER LINER
  1. If required remove wheel.
  2. Remove pushpins.
  3. Drill out rivets.
  4. Remove liner.
