Mirror, Outside Rearview: Removal

GC0119153Courtesy of CHRYSLER GROUP, LLC
  1. Partially remove the door trim panel as necessary to gain access to the mirror. Refer to PANEL, DOOR TRIM, REMOVAL .
    GC0119138Courtesy of CHRYSLER GROUP, LLC

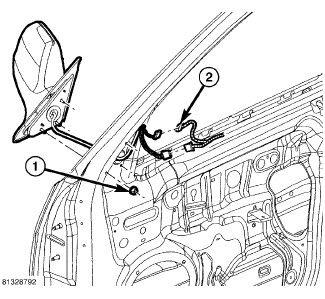

  2. Disconnect the wire harness connectors (2) from the mirror.
  3. Remove the three nuts (1) that secure the mirror to the door and carefully remove the mirror.
