Gap And Flush: Specifications
NOTE:
All measurements are in millimeters.
| O/F = Over Flush U/D = Up/Down |
U/F = Under Flush F/A = Fore/Aft |
||
|---|---|---|---|

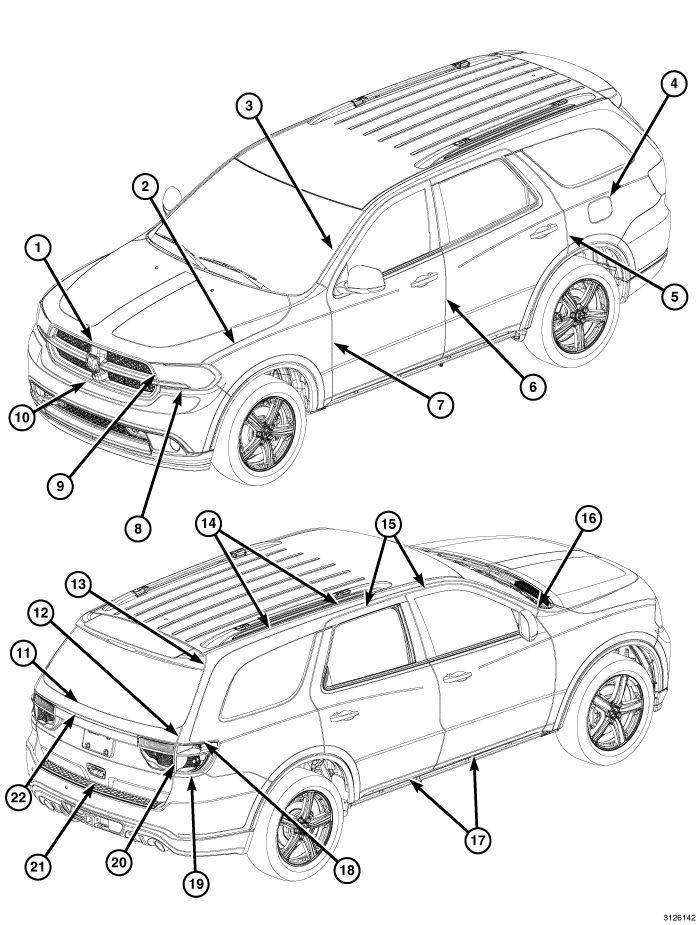

| DIMENSION | DESCRIPTION | GAP | FLUSH |
| 1 | Hood to Grille (along top) | 6.0 +/- 2.0 | Hood O/F 3.2 +/- 2.0 |
| Parallel within 2.0 | Consistent within 2.0 | ||
| 2 | Hood to Fender | 3.5+/- 1.5 | Hood U/F 1.0+/- 1.5 |
| Parallel within 1.5 | Consistent within 1.5 | ||
| Side to side within 1.5 | Side to side within 1.5 | ||
| Extreme rear 4.5 | |||
| 3 | Windshield to A-Pillar | 6.0+/- 2.0 | A-Pillar O/F 7.0+/- 2.0 (upper at roof) |
| Parallel within 2.0 | 7.0 +/- 2.0 (mid) | ||
| Side to side within 2.0 | 12 +/- 2.0 (lower at cowl) | ||
| 4 | Fuel Door to Body Side | 3.0 +/- 1.5 | Door U/F 0.5 +/- 1.5 |
| Parallel within 1.5 | Parallel within 1.0 | ||
| 5 | Rear Door to Body Side | 4.0 +/- 1.0 | 0.0+/- 1.5 |
| Parallel within 1.5 | Parallel within 1.5 | ||
| Feature Line 0.0+/-1.5 U/D | Consistent within 1.0 | ||
| 6 | Front Door to Rear Door | 4.0+/- 1.0 | Front Door O/F 1.0 +/- 1.25 |
| Feature Line 0.0 +/-1.5 U/D | Parallel within 1.5 | Consistent within 1.5 | |
| 7 | Fender to Front Door | 4.0 +/- 1.25 | Fender O/F 1.0 +/- 1.25 |
| Parallel within 1.5 | Consistent within 1.5 | ||
| Feature Line 0.0 +/- 1.5 U/D | |||
| 8 | Headlamp to Fender | 2.0 +/- 2.0 | Headlamp O/F 0.75+/- 2.0 |
| Parallel within 1.5 | Consistent within 1.0 | ||
| Side to side within 2.0 | Side to side within 1.5 | ||
| 9 | Headlamp to Fascia | 2.0+/- 2.0 | - |
| Parallel within 2.0 | |||
| Side to side within 2.0 | |||
| 10 | Headlamp to Grill | 3.0+/- 2.0 | - |
| (Exception) Top 25 mm. | Parallel within 2.0 | ||
| Side to side within 2.0 | |||
| 11 | Grille to Fascia | 3.0 +/-2.0 | - |
| Parallel within 2.0 | |||
| 12 | Liftgate Glass to Liftgate | 3.0 +/- 2.0 | Liftgate 2.0 0/F +/- 1.5 |
| Parallel within 2.0 | Consistent within 1.5 | ||
| 13 | Liftgate to Body Side | 4.0+/- 1.5 | Body side 1.0 O/F +/- 1.5 |
| Parallel within 2.0 | |||
| Side to side within 2.0 | Side to side within 1.5 | ||
| Feature Line 0.0 +/- 1.5 | |||
| 14 | Spoiler to Body Side | 4.0 +/- 1.5 | Spoiler O/F 1.0 +/-2.0 |
| Side to side within 1.5 | Consistent within 1.0 | ||
| 15 | Roof to Body Side (Ditch Width) | 26.0 +/- 1.5 | - |
| Parallel within 1.5 | |||
| Side to side within 1.5 | |||
| 16 | Fender to Body Side | 2.0 +/- 1.5 | Fender 0.5 O/F =/-1.5 |
| Parallel within 1.5 | Consistent within 1.5 | ||
| Side to side within 2.0 | Side to side within 1.5 | ||
| 17 | Door Headers to Body Side | 4.0 +/- 1.5 | Door 1.6 U/F +/-1.5 |
| Parallel within 1.5 | Consistent within 1.5 | ||
| 18 | Doors to Sill Moulding | 6.0 +/- 2.0 | - |
| Parallel within 2.0 | |||
| 19 | Body Side Taillamp to Body Side | 2.0 +2.0/- 1.0 | Lamp 0.75 U/F +/- 2.0 |
| Parallel within 2.0 | Side to side within 2.0 | ||
| Side to side within 2.0 | |||
| 20 | Body Side Taillamp to Fascia | 2.0 +/- 2.0 | - |
| Parallel within 2.0 | |||
| Side to side within 2.0 | |||
| 21 | Liftgate Taillamp to Body Side Taillamp | 4.0+/- 2.0 | Liftgate Taillamp 1.0 U/F +/- 2.0 |
| Parallel within 2.0 | Consistent within 2.0 | ||
| Side to side within 2.0 | Side to side within 2.0 | ||
| 22 | Liftgate to Fascia (Bottom of Trough) | U/D 6.0 +/-2.0 | - |
| Liftgate to Fascia (Top of Step pad) | U/D 5.0 +/- 2.0 | ||
| Parallel within 2.0 | |||
| 23 | Light Bar to Liftgate | 2.0 +/- 2.0 | Liftgate 1.0 O/F +/- 2.0 |
| Parallel within 2.0 | Consistent within 2.0 | ||
