Rotor, Brake: Installation
NOTE:

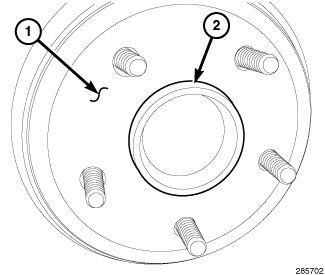

Front rotor shown in illustration, rear rotor is similar.
- Install the rotor (1) on wheel studs.
- Install the brake caliper. Refer to CALIPER, DISC BRAKE, INSTALLATION .
- Pump brake pedal until caliper pistons and brake pads are seated and a firm brake pedal is obtained.
