Plate, Skid, Transmission: Removal

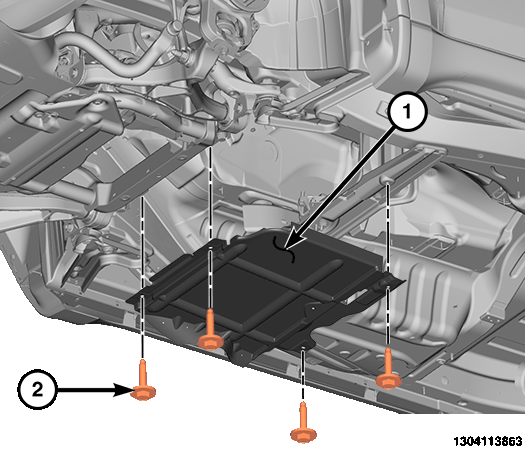

GC0175236Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle.
  2. Remove the bolts (2) and remove the skid plate (1).
