Plate, Skid, Front Suspension: Removal

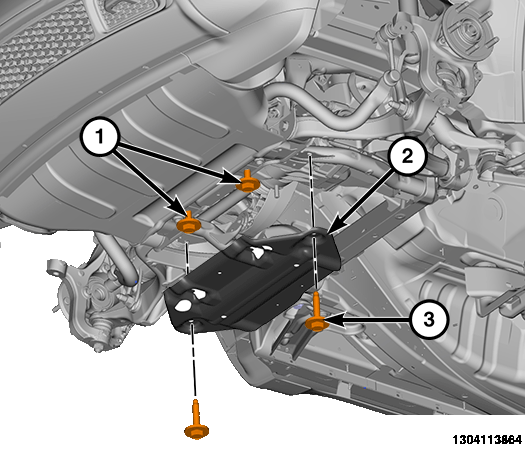

GC0175267Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle.
  2. Loosen the front bolts (1).
  3. Remove the rear bolts (3) and remove the skid plate (2).
