Removal- Bulb - High Beam

  1. Disconnect and isolate the battery negative cable.
  2. Remove the headlamp assembly. Refer to UNIT, FRONT LAMP, REMOVAL .
    GC0160707Courtesy of CHRYSLER GROUP, LLC
  3. Remove the access cover (1) for the high beam headlamp assembly by turning it counter clockwise.

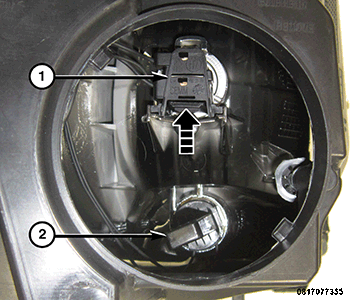

    GC0171024Courtesy of CHRYSLER GROUP, LLC
  4. Release the wire harness connector for the high beam lamp socket (1) by pushing it according to the directional arrows shown in the graphic.
  5. Remove the bulb.
