Removal - Bulb - Low Beam

  1. Disconnect and isolate the battery negative cable.
  2. Remove the headlamp assembly. Refer to UNIT, FRONT LAMP, REMOVAL .
    GC0160707Courtesy of CHRYSLER GROUP, LLC
  3. To remove the low beam headlamp cover, rotate the cover counter clockwise (2).

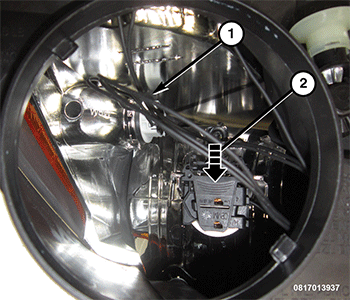

    GC0176887Courtesy of CHRYSLER GROUP, LLC
  4. Release the connector for the low beam socket (2) by pushing the connector in the direction shown in the figure.
  5. Remove the bulb.
