Lamp, License Plate: Installation

Courtesy of CHRYSLER GROUP, LLC

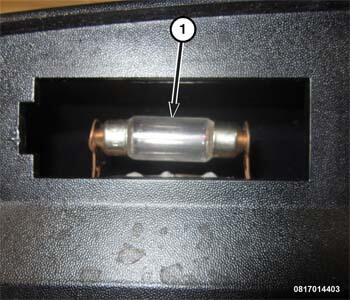

Set the bulb (1) into lamp unit socket.

Courtesy of CHRYSLER GROUP, LLC
Snap the lamp housing lense/cover into place making sure the press tab (1) is aligned properly in the housing.

Courtesy of CHRYSLER GROUP, LLC

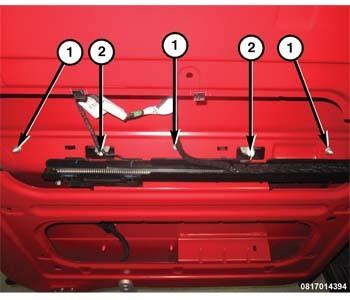

Position the license lamp trim panel to the rear cargo door.
Install and securely tighten the fasteners (1) and connect the wire harness connectors (2) to the lamp housing.
Install the rear cargo door trim panel.
Connect the battery negative cable.
