Lamp, Fog: Installation
- Position the fog lamp assembly for installation.

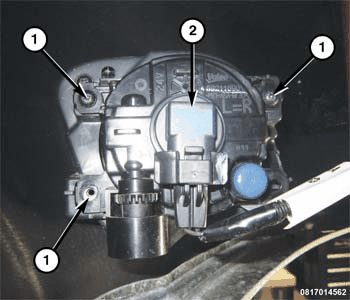

- Install and securely tighten the fog lamp fasteners (1).
- If only the fog lamp bulb was removed, install the new bulb to the socket and install the wire harness connector (2) to the back of the fog lamp housing. The connector inserts vertically and if properly seated, twist the connector horizontally until the connector appears as shown in this image.
- Install the access panel cover to the wheel well and secure using one fastener as shown (1).
- Connect the negative battery cable.
- If the fog lamp assembly was replaced, perform a fog lamp alignment procedure. Refer to STANDARD PROCEDURE .
