Seat, Third Row: Removal

Courtesy of CHRYSLER GROUP, LLC

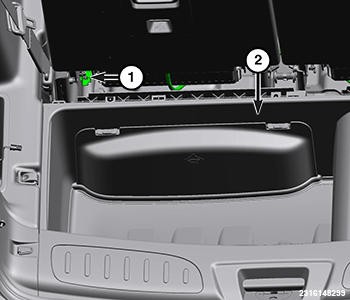

Open the front trim caps (2) and remove the bolts (1).

Courtesy of CHRYSLER GROUP, LLC

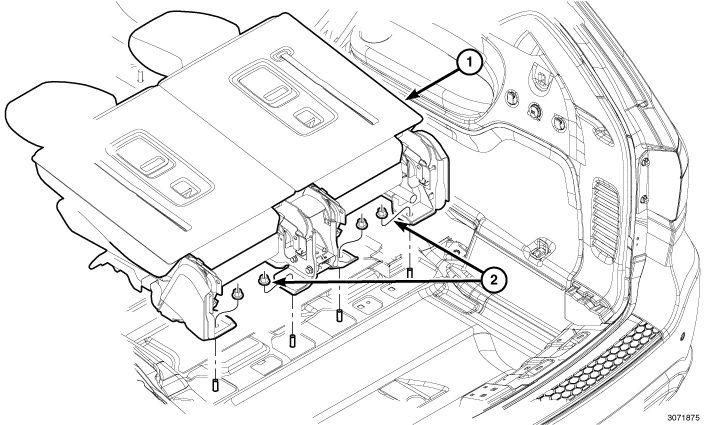

Position the seat backs (1) into the down position and remove the four nuts (2).
Remove load floor. Refer to LOAD FLOOR, FOOTWELL, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Disconnect the wire harness connector (1) for the third row seat headrests.
Remove the seat assembly through the liftgate opening.
