Headrest, Third Row: Removal

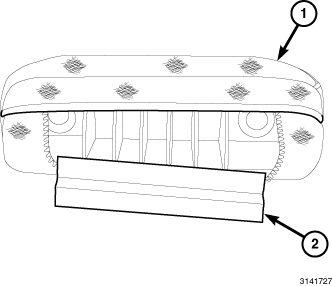

GC0145546Courtesy of CHRYSLER GROUP, LLC
  1. Release the j-clips (2) and remove the headrest cover (1) from the headrest.

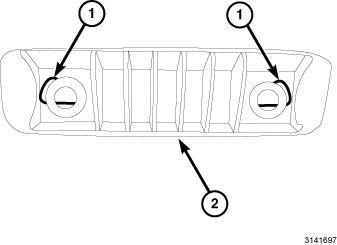

    GC0145545Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Illustration shown with headrest cover removed for clarity.

  2. Release the clips (1) and remove the headrest (2) from the pivot mechanism posts

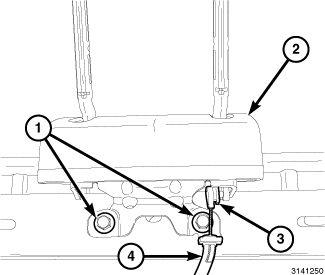

    GC0145544Courtesy of CHRYSLER GROUP, LLC
  3. Remove the seat back cover. Refer to COVER, SEAT BACK, SECOND ROW, REMOVAL .
  4. Disconnect the cable end (3) and separate the cable housing (4) from the headrest mechanism (2).
  5. Remove the bolts (1) and remove the headrest mechanism (2).
